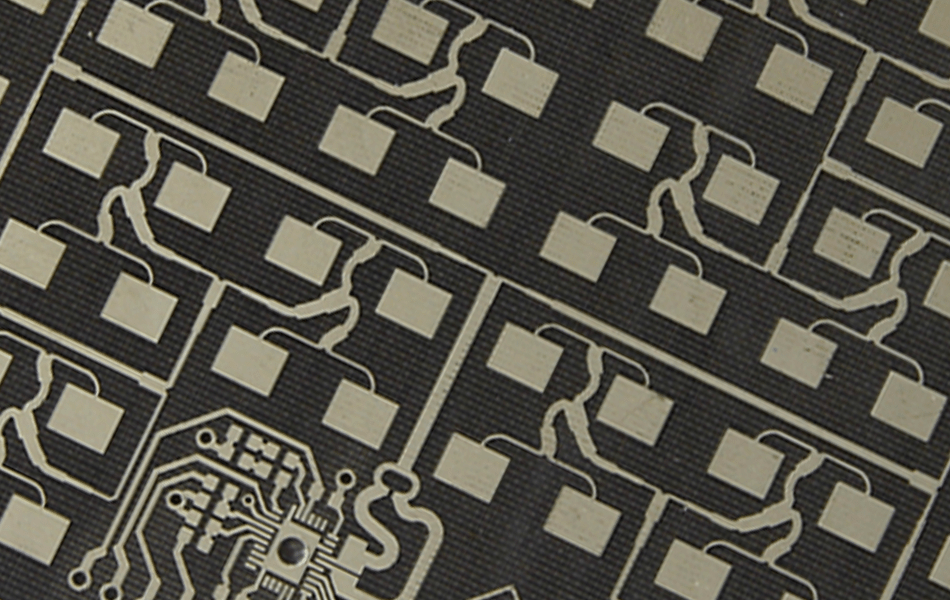

Rogers 5880 is a high-performance PTFE-based material extensively used in RF (radio frequency) and microwave frequency circuit design, especially in defense applications. Military electronic systems must operate in extreme environments and meet stringent performance requirements. Rogers 5880, with its excellent electrical properties, extremely low dielectric loss, thermal stability, and environmental resistance, plays a critical role in radar systems, communication systems, electronic warfare equipment, and other military devices. The following details Rogers 5880 PCB’s applications in the defense industry, its performance advantages, and relevant design and production considerations.
Characteristics of Rogers 5880 and Its Advantages in Defense Applications
1. Extremely Low Dielectric Constant and Loss
Dielectric Constant (Dk): Rogers 5880 has a dielectric constant of 2.2 (at 10 GHz), ensuring efficient signal transmission in high-frequency applications. Its low dielectric constant minimizes signal delay, making it ideal for high-speed data transmission and precise signal processing in military systems.
Dielectric Loss Tangent (Df): The dielectric loss tangent of Rogers 5880 is 0.0009 (at 10 GHz), meaning it has minimal energy loss during high-frequency signal transmission. This is crucial for maintaining signal integrity and stability over long distances in military radar and communication systems, which require precise long-range transmission and signal processing.
2. Excellent Thermal Stability and Environmental Resistance
Thermal Stability: Rogers 5880 maintains dimensional stability even in extreme temperature environments, preventing material expansion or contraction due to heat or cold. This is critical for military equipment operating in harsh climates and combat environments.
Environmental Resistance: Rogers 5880 material exhibits superior resistance to moisture, chemical corrosion, and UV radiation, enabling it to maintain reliable performance in harsh environments. This makes it an ideal choice for antennas, radar, and communication systems exposed to external conditions in deserts, oceans, or polar regions.
3. Lightweight for Improved Mobility
Lightweight: The low density of Rogers 5880 makes it suitable for military equipment that requires weight reduction to improve mobility and fuel efficiency. Whether used in aircraft, naval vessels, or ground vehicles, 5880 material provides high-frequency performance while significantly reducing system weight and enhancing combat effectiveness.
4. Mechanical Processability and Manufacturability
Processability: Although Rogers 5880 is PTFE-based and typically challenging to process, its mechanical strength has been improved through filler technology, enhancing its processability. It can be cut, drilled, and laminated using standard PCB manufacturing processes, making it suitable for complex military circuit designs. This characteristic makes 5880 material ideal for multilayer, high-density circuit boards, allowing for the integration of various electronic functions.
Specific Applications of Rogers 5880 in the Defense Industry
1. Radar Systems
Radar systems are critical electronic equipment in the defense sector, especially for long-range detection and early warning systems. Rogers 5880 material, with its low loss and high stability in high-frequency signal transmission, is a core material for radar system design.
Air Defense Radar: Rogers 5880 in air defense radar applications reduces high-frequency signal attenuation, enhancing detection accuracy and range. Its use in multilayer PCB designs ensures efficient operation of complex signal processing circuits, enabling air defense systems to accurately identify aerial targets.
Naval Radar: Naval radars must operate in harsh marine environments for extended periods. The moisture resistance, salt fog tolerance, and high-temperature durability of 5880 make it the ideal choice for such radar systems. Its low-loss properties also ensure clear signals and fast response times for long-range target detection at sea.
2. Military Communication Systems
Military communication systems require stable connections in various challenging environments. Rogers 5880 is widely used in military communication equipment due to its excellent electrical properties and environmental resilience, especially in satellite communication, encrypted wireless communication, and high-frequency data link systems.
Satellite Communication: In satellite communication systems, the low-loss properties of Rogers 5880 ensure efficient signal transmission in very high-frequency bands, enabling long-distance, high-fidelity communication between satellites, ground stations, and drones—critical for military reconnaissance and battlefield monitoring.
Encrypted Wireless Communication: Rogers 5880 is used in the design of high-frequency antennas and transmission lines for encrypted communication systems, where its low dielectric loss ensures reliable communication in battlefield environments. Its environmental resilience also ensures that communication systems remain operational in harsh conditions such as high humidity or sandstorms.
3. Electronic Warfare and Electronic Countermeasures (ECM)
Electronic warfare (EW) and electronic countermeasures (ECM) play a critical role in modern warfare by jamming or suppressing enemy radar and communication systems while protecting friendly systems from electronic interference. Rogers 5880 material, due to its superior electrical performance, is widely used in these high-frequency signal processing devices.
Radar Jammers: Rogers 5880 supports the efficient operation of radar jammers by minimizing signal attenuation and ensuring the emission of strong jamming signals that can disrupt enemy radar systems.
Communication Interference and Protection: In electronic warfare, Rogers 5880 is used to build high-frequency circuits that interfere with enemy wireless communication. It can also be used to shield friendly communication systems from enemy electronic attacks.
4. Missile Guidance and Navigation Systems
Precision guidance systems are crucial in modern military weapons. Missiles, drones, and other precision-strike weapons rely on highly accurate guidance and navigation systems. Rogers 5880 ensures fast signal processing and low-loss transmission in these systems.
Missile Antennas and Control Circuits: In missile guidance systems, Rogers 5880’s low dielectric loss ensures more efficient signal transmission from the antennas, allowing missiles to quickly lock onto targets for precise guidance.
Drone Navigation and Control: The control and navigation systems in drones require stable signal processing and transmission. Rogers 5880’s high-frequency performance supports efficient flight control and real-time data transmission, enabling drones to execute missions in complex battlefield environments.
Key Design and Production Considerations
1. Signal Integrity and High-Frequency Response
In defense applications, designs using Rogers 5880 must focus on maintaining high-frequency signal integrity. Given its low dielectric loss, engineers should optimize trace layout to minimize signal loss and prevent reflection.
2. Thermal Management and Heat Dissipation
Military equipment often faces high-power demands, especially in radar and communication systems, where thermal management is crucial. Although Rogers 5880 has excellent thermal stability, efficient heat dissipation is still needed in high-power applications to ensure equipment durability and long-term reliability.
3. Environmental Resistance and Long-Term Stability
Rogers 5880 materials must undergo rigorous environmental testing to ensure long-term reliability in extreme conditions. This includes testing in high humidity, high temperatures, and corrosive environments, which is especially critical for military operations in harsh environments like oceans and deserts.
Rogers 5880 material, with its outstanding high-frequency performance, extremely low dielectric loss, lightweight design, and excellent environmental resilience, is the material of choice for critical military devices. It plays a vital role in radar, communication, and electronic warfare systems, while meeting the modern defense industry’s stringent requirements for lightweight, reliability, and long-term durability. Engineers can fully utilize the advantages of 5880 material in design and manufacturing to build efficient and reliable military electronic systems.
