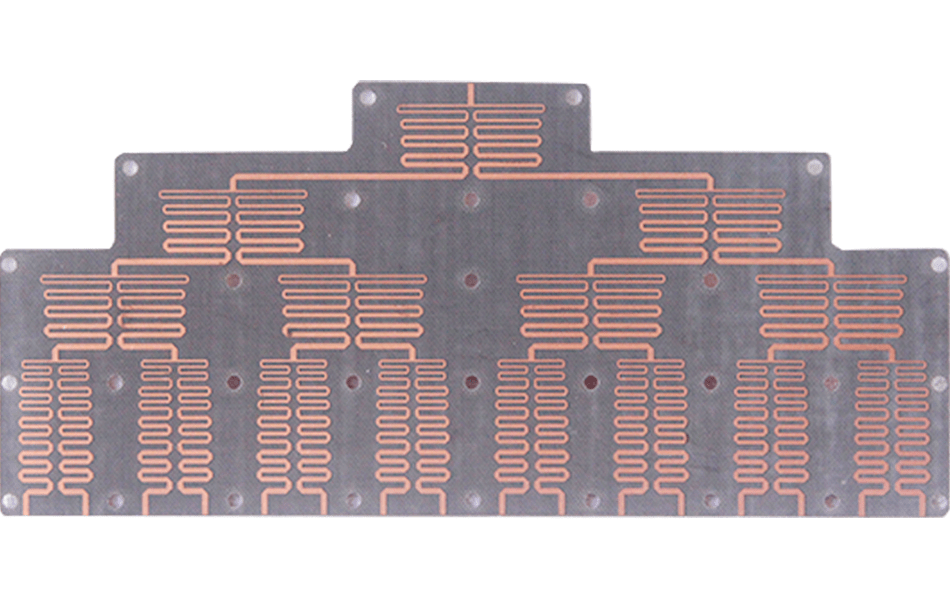

Rogers 4003C material is a high-performance, high-frequency PCB substrate widely used in RF (radio frequency) and microwave communication equipment. Communication equipment demands stable, reliable, and low-loss signal transmission, especially in high-frequency applications. The dielectric constant, loss tangent, and coefficient of thermal expansion (CTE) of the material directly impact the quality of signal transmission. Below is a detailed explanation of the specific applications of Rogers 4003C in communication equipment, its performance advantages, and relevant design and production requirements.
Characteristics of Rogers 4003C Material and Its Advantages in Communication Equipment
1. Dielectric Performance
Dielectric Constant (Dk): Rogers 4003C has a dielectric constant of 3.38 (at 10 GHz), which ensures stable and fast signal transmission in high-frequency communication applications. This lower dielectric constant helps reduce signal delays caused by material properties.
Dielectric Loss Tangent (Df): Rogers 4003C has a dielectric loss tangent of 0.0027 (at 10 GHz), making it a low-loss material. It effectively reduces energy loss during high-frequency signal transmission and maintains signal integrity. This is particularly important in communication equipment, especially in scenarios involving high-frequency signal transmission and reception, such as antennas, filters, and amplifiers.
2. Thermal Stability and Mechanical Properties
Coefficient of Thermal Expansion (CTE): Rogers 4003C has a CTE of 46 ppm/°C in the Z-direction, close to FR4 materials. This provides excellent dimensional stability in multilayer circuit boards. Since communication equipment often requires multilayer PCBs, the CTE of 4003C ensures that the board does not delaminate or warp under frequent temperature fluctuations.
Thermal Conductivity: Rogers 4003C has a thermal conductivity of 0.5 W/mK, which, although not very high, can be managed through design optimizations (such as heat management and heat sinks) to address potential overheating issues in communication equipment.
3. Processability
Ease of Processing: Rogers 4003C’s material properties allow it to be processed using conventional PCB manufacturing techniques, such as drilling, etching, and lamination. Its processing characteristics are similar to traditional FR4 materials, making it cost-effective for mass production and suitable for multilayer PCB designs that integrate multiple functional modules.
4. Electromagnetic Compatibility (EMC)
EMC Performance: Communication equipment often operates in complex electromagnetic environments. The low dielectric loss and good electromagnetic compatibility of Rogers 4003C make it an important material for reducing electromagnetic interference (EMI) and maintaining circuit stability. It is particularly suitable for applications in base stations, routers, and other devices that require high-precision signal processing.
Specific Applications of Rogers 4003C in Communication Equipment
1. Wireless Base Stations
Wireless base stations are core components of modern communication networks, especially in high-frequency applications such as 5G and 4G LTE, where large amounts of high-frequency signals and data need to be processed. The low dielectric loss and high-frequency stability of Rogers 4003C make it an ideal choice for antenna modules, filters, and power amplifiers in base stations.
Antenna Arrays: In base station antenna design, 4003C ensures efficient propagation of high-frequency signals while minimizing energy loss, improving the coverage and quality of signal transmission.
Power Amplifiers (PA): Rogers 4003C’s low-loss characteristics reduce energy loss in power amplifier circuits, enhancing power output efficiency and reducing heat generation. This is especially important for base station equipment that needs to operate for extended periods.
2. Wi-Fi and Wireless Local Area Network (WLAN) Devices
In WLAN devices (such as Wi-Fi routers and access points), Rogers 4003C PCBs are widely used in high-frequency signal processing modules. With the expansion of the wireless spectrum, particularly in applications above the 5 GHz band, signal transmission efficiency and reliability become critical.
RF Modules: The stable dielectric properties of 4003C ensure low-loss transmission of RF signals in high-frequency ranges, reducing signal reflection and attenuation. It is often used in the design of RF front-end modules in routers.
Filter and Antenna Design: In Wi-Fi devices, filters and antennas are critical components that determine signal quality. Rogers 4003C ensures efficient signal emission and reception, while reducing unnecessary noise interference in filter designs.
3. Satellite Communication Systems
Satellite communication systems rely on extremely high-frequency signal transmission, often exceeding 10 GHz. Rogers 4003C performs excellently in such high-frequency applications, particularly in ground station receiving equipment and RF modules for satellite uplinks.
High-Frequency Transmission Lines: In satellite communication, transmission lines must have very low losses to ensure signal strength and clarity over long distances. The 4003C material meets these high standards, enabling extremely low energy attenuation along transmission lines.
Radar Modules: Satellite communication also often involves radar detection and navigation functions. The use of 4003C in these RF modules ensures precise processing of high-frequency signals, reducing signal delay and distortion.
4. RFID and Internet of Things (IoT) Devices
RFID and IoT devices are increasingly used in various communication networks, often operating in high-frequency environments that require low power consumption and efficient data transmission.
RFID Antenna Design: Rogers 4003C improves antenna performance in RFID devices, ensuring stable communication between tags and readers, while reducing signal loss in high-frequency environments.
IoT Gateways: In IoT device gateway designs, Rogers 4003C is often used in signal processing and wireless transmission modules, ensuring efficient data handling and transmission in complex radio frequency environments.
Key Design and Production Considerations
1. Signal Integrity Design
Signal integrity is critical in communication equipment. The low dielectric loss and stable dielectric constant of Rogers 4003C make it an ideal choice for high-frequency signal processing. However, careful attention must still be given to trace layout and layer structure during design to minimize crosstalk and signal reflection.
2. Thermal Management
Although the thermal conductivity of 4003C is not very high, in high-frequency, high-power applications (such as power amplifiers in wireless base stations), proper thermal management systems are necessary. Heat dissipation can be optimized by adding heat sinks or improving PCB layout.
3. Environmental Testing and Reliability
Communication equipment often operates in extreme environments, such as high temperatures, humidity, and significant electromagnetic interference. Therefore, during production, 4003C PCBs must undergo rigorous environmental testing, including thermal cycling, humidity, and salt spray tests, to ensure long-term reliability and stability.
Rogers 4003C material, with its excellent high-frequency performance, low dielectric loss, and good processability, has become the top choice for critical components in communication equipment. It provides stable signal transmission in wireless base stations, Wi-Fi devices, satellite communication, and IoT devices, while also reducing production costs through its compatibility with FR4 manufacturing processes, making it suitable for mass production. During the design and manufacturing process, engineers can fully leverage the advantages of 4003C material to achieve high-performance and reliable communication equipment.
