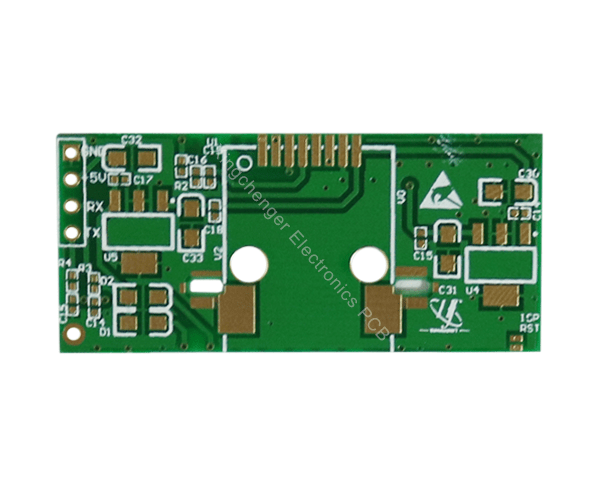

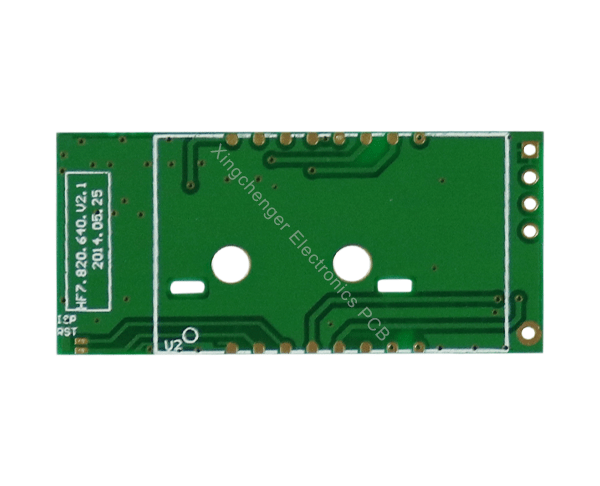

Teflon F4B PCB

Description

1. Overview of Teflon F4B PCB
Teflon F4B PCB (Printed Circuit Board) is a high-performance PCB material widely used in high-frequency circuits, RF circuits, and high-end electronic products that require stable electrical performance. F4B is a multilayer circuit board reinforced with Teflon (PTFE) composite material, offering superior electrical properties compared to traditional FR4 materials, especially in high-frequency, low-loss, and moisture-heat resistance areas.
Developed by Rogers Corporation, F4B PCB material is an advanced high-frequency material typically composed of epoxy resin, glass fiber reinforcement, and Teflon composites, with extremely low dielectric constant (Dk) and loss factor (Df). These characteristics make F4B PCBs invaluable in RF and microwave applications.
2. Properties of Teflon F4B PCB
F4B material exhibits a series of exceptional properties, making it the ideal choice for high-frequency and multilayer circuit boards. The main features of F4B PCB are as follows:
Low Dielectric Constant (Dk) and Low Loss Factor (Df): F4B material has an extremely low dielectric constant (typically ranging from 2.55 to 10.2) and low loss factor, which means it effectively reduces signal transmission loss, improving the quality of signal propagation. This makes F4B ideal for RF, microwave, and high-speed digital circuits.
Excellent Thermal Stability: F4B material has exceptional thermal stability, allowing it to withstand high operating temperatures. Its thermal expansion coefficient (CTE) is close to that of copper, ensuring the stability of interlayer connections in multilayer PCBs, even under extreme temperature fluctuations.
Low Moisture Absorption: F4B material has extremely low moisture absorption, ensuring stable electrical performance even in humid environments. This makes it ideal for applications in high-humidity environments or situations requiring long-term stability.
High Mechanical Strength and Rigidity: F4B material exhibits excellent mechanical properties and rigidity, making it suitable for high-density, high-integration circuit designs. Even in extremely small PCB designs, F4B can provide sufficient strength to maintain stability.
Excellent Electrical Performance: F4B offers low dielectric loss, enabling stable operation at high frequencies, making it indispensable for RF and microwave applications. Its stable electrical characteristics in high-frequency environments make it particularly important in communication systems.
Ease of Processing: Despite its excellent performance, F4B material can still be processed using conventional PCB manufacturing techniques, such as drilling, pattern etching, and metallized vias, offering great flexibility in high-frequency PCB production.
3. Structure Design of Teflon F4B PCB
The structural design of Teflon F4B PCB typically consists of multiple electrical layers and grounding layers. In the design, F4B multilayer PCBs often employ copper foils on both the inner and outer layers to ensure stable signal transmission. The number of layers typically ranges from 4 to 10, depending on design requirements.
Layer Interconnections: Layer interconnections in F4B PCB are primarily achieved through plated-through holes (PTH) or microvias, which connect different electrical layers and form a complete circuit path.
Number of Layers and Copper Foil Thickness: Copper foil thickness in F4B multilayer PCBs typically ranges from 18μm to 105μm, depending on the specific circuit design requirements.
Internal and External Layers: The internal layers of F4B multilayer PCB are made from F4B composite material, while the external layers typically use metalized films or resin films to enhance thermal stability and oxidation resistance.
4. Applications of Teflon F4B PCB
F4B multilayer PCBs are widely used in many demanding fields, particularly where high-frequency, low-loss, and stable performance are required. Key applications include:
RF and Microwave Fields: Due to its superior electrical properties, F4B PCB is widely used in RF communication devices, satellite communication, 5G base stations, optical fiber communication, and other applications. F4B material ensures low loss and high stability for high-frequency signals, making it indispensable in communication systems.
Consumer Electronics: F4B material is also widely used in consumer electronics products such as smartphones, tablets, TVs, and audio systems. Its high performance and low thickness make it ideal for consumer electronics that require high signal quality in compact spaces.
Automotive Electronics: With the development of automotive electronics, F4B multilayer PCBs are increasingly used in automotive electronics systems, including navigation systems, in-vehicle entertainment, autonomous driving technologies, and car networking. Its high-temperature stability and shock resistance ensure reliable operation in automotive electronic systems.
Medical Devices: F4B PCBs are used in medical devices such as pacemakers, ultrasound diagnostic equipment, CT scanners, and other medical equipment. Its high precision and reliability make it essential for medical devices that require strict safety and functionality standards.
Industrial Control: F4B PCBs are also used in industrial control applications, including automation equipment, robots, sensors, and PLCs. Its performance and stability ensure long-term, reliable operation in industrial equipment.
5. Advantages and Challenges of Teflon F4B PCB
Advantages:
High-Frequency Performance: F4B material’s low loss and low dielectric constant make it ideal for RF and microwave applications.
Excellent Thermal Stability and Mechanical Properties: F4B can operate reliably in high-temperature and complex environments.
Low Moisture Absorption: Low moisture absorption ensures stable performance even in humid environments.
Ease of Processing: F4B can be processed using standard PCB production techniques, providing flexibility for high-frequency PCB production.
Challenges:
Higher Cost: F4B is more expensive than standard FR4 materials, making it primarily used in high-performance, high-end products.
Complex Design Requirements: F4B PCB design requires precision and careful consideration of factors such as thermal management, signal paths, and layer count.
Teflon F4B PCB, with its excellent electrical performance, thermal stability, and low loss characteristics, is widely used in high-frequency circuits and complex designs. Despite its higher cost, its superior performance and reliability make it a key component in industries such as communications, consumer electronics, automotive electronics, and medical devices. As technology continues to advance, the application prospects of F4B materials will expand further.
