Description

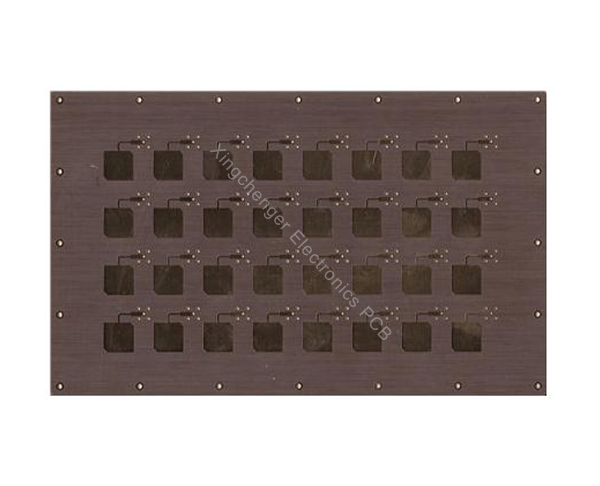

Taconic high-frequency PCB is class of printed circuit boards designed specifically for high-frequency signal transmission. They typically utilize high-performance substrate materials produced by Taconic Advanced Dielectric Division. These materials are known for their excellent electrical performance and reliability, making them suitable for applications where signal integrity and thermal management are critical. Taconic PCB include PTFE and ceramic-filled PTFE, with PTFE (Polytetrafluoroethylene) being a synthetic fluoropolymer known for its high heat resistance, low friction, and excellent electrical insulation.
1. Material Characteristics of Taconic High-frequency PCB
The main features of Taconic PCB materials include:
Low Dielectric Loss: Taconic PCB materials have a low dissipation factor, which helps reduce losses in signal transmission.
Low Moisture Absorption: They have low moisture absorption in humid environments, helping to maintain consistent electrical performance.
Broad Dielectric Range: Taconic PCB materials offer a wide range of dielectric constants suitable for different frequency applications.
Low Signal Loss: Due to the material’s low dielectric loss characteristics, signal loss is minimized.
Stable Thermal and Electrical Performance: Taconic PCB materials maintain stable performance even under extreme temperature conditions.
Suitable for HF and RF Applications: Taconic PCB materials are suitable for high-frequency (HF) and radio frequency (RF) applications.
Cost-Effective: Taconic PCB materials are relatively inexpensive while offering high performance.
High Temperature Resistance: Taconic PCB materials can withstand high temperatures without significant changes in shape, size, or performance.
2. Manufacturing Process of Taconic High-frequency PCB
The manufacturing process of Taconic high-frequency PCB involves several steps:
Material Preparation: High-performance substrate materials from Taconic, such as PTFE and ceramic-filled PTFE, are selected.
Drilling: High-precision drilling technology is used to ensure accurate hole positioning for subsequent interlayer connections.
Lamination: High-temperature and high-pressure lamination processes are employed to tightly bond multiple layers of materials, forming a robust multilayer structure.
Pattern Transfer: Exposure machines or LDI technology is used to precisely transfer circuit patterns onto the substrate.
Etching: Chemical or laser etching techniques are used to remove excess copper layers, forming the required circuit patterns.
Surface Treatment: Immersion gold treatment is conducted, including the deposition of chemical nickel and chemical gold, to enhance the PCB’s corrosion resistance and reliability.
3. Application Fields of Taconic High-frequency PCB
Due to their exceptional performance, Taconic high-frequency PCB is widely used in the following fields:
Telecommunications: Taconic PCB are used in routers, switches, and communication equipment due to their high-frequency capabilities and signal integrity.
Automotive: Taconic PCB are suitable for ECUs, infotainment systems, and ADAS in the automotive industry.
Medical Equipment: MRI machines, CT scanners, implantable medical devices, etc.
Consumer Electronics
Wireless Communication
Aerospace and Defense
High-Frequency Applications
4. Environmental and Economic Aspects of Taconic High-frequency PCB
Taconic focuses on environmental protection in the production process, and its materials are recyclable, reducing the impact on the environment. Additionally, the long service life of Taconic PCB reduces resource consumption, aligning with sustainable development requirements.
Taconic high-frequency PCB, with their excellent electrical performance, mechanical performance, and environmental adaptability, have become the ideal choice for high-performance electronic devices. They not only meet the needs of high-performance applications but also provide environmentally friendly and economical solutions.
