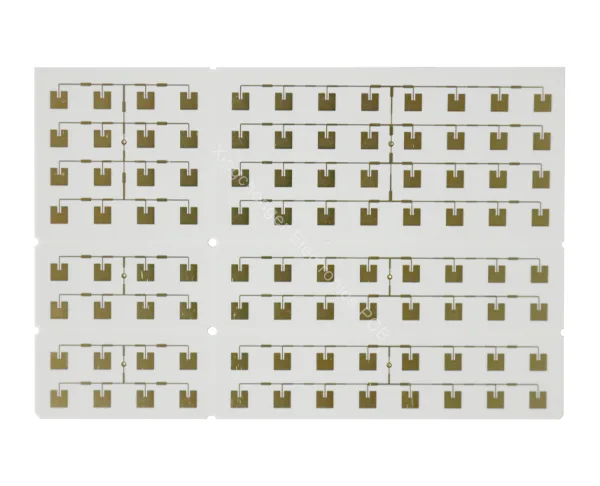

Rogers Multilayer PCB

Description

1. Overview of Rogers High-Frequency Multilayer PCBs
Rogers high-frequency multilayer PCBs are renowned for their excellent performance and reliability in RF and microwave applications. As a leading provider of high-frequency laminates, Rogers offers a wide range of materials, such as the RT, TMM, and RO series. These materials are characterized by low loss, stable dielectric constant (Dk), and low thermal expansion coefficient (CTE), making them ideal for modern high-frequency multilayer PCB designs.
With the growing demand for 5G communication, radar systems, and aerospace technologies, the adoption of high-frequency multilayer PCBs has increased significantly. Designing and manufacturing multilayer PCBs require careful optimization of electrical, thermal, and mechanical performance.
2. Key Features of Rogers High-Frequency Multilayer PCBs
Superior Electrical Performance
Low Loss: Rogers materials exhibit extremely low dielectric loss (Df), enabling low insertion loss in high-frequency conditions.
Stable Dk: The dielectric constant remains stable across a wide frequency range, ensuring precise signal transmission.
Low PIM: Rogers materials minimize passive intermodulation distortion (PIM), reducing signal interference in wireless systems.
Reliable Thermal Management
High thermal conductivity makes Rogers materials suitable for high-power circuits.
Low CTE ensures stability during thermal cycling.
Mechanical Strength and Dimensional Stability
Excellent flatness and strength make Rogers materials ideal for complex multilayer PCB stacks.
Long-term stability under harsh environmental conditions.
High Compatibility
Can be combined with FR4 for hybrid stack-ups to balance cost and performance.
Supports various plating and etching processes.
3. Applications of Rogers High-Frequency Multilayer PCBs
5G Communication Base Stations
Used in antennas, power amplifiers, and filters for efficient high-frequency signal transmission.
Radar Systems
Essential for automotive millimeter-wave radar, aviation radar, and defense radar systems.
Satellite Communication and Aerospace
Ideal for high-frequency satellite systems and high-temperature, high-radiation aerospace environments.
Medical Equipment
Used in MRI machines and RF therapy devices to ensure accurate signal processing.
High-Frequency Filters and Power Modules
Supports complex high-frequency circuit designs for filters and RF power modules.
4. Common Rogers Materials for Multilayer PCBs
RO4350B
Dk: 3.48
Df: 0.0037
Features: Cost-effective, compatible with FR4 processes.
Applications: 5G antennas, filters, power amplifiers.
RO3003
Dk: 3.0
Df: 0.0013
Features: Low dielectric loss, suitable for high-frequency, high-power circuits.
Applications: Radar systems, high-frequency microwave communication.
RT5880
Dk: 2.2
Df: 0.0009
Features: Ultra-low loss, ideal for ultra-high-frequency and low-PIM applications.
Applications: Satellite communication, millimeter-wave applications.
TMM10
Dk: 9.8
Df: 0.0022
Features: High dielectric constant for compact designs.
Applications: Miniaturized antennas and filters.
5. Processing Considerations for Rogers High-Frequency Multilayer PCBs
Due to the unique properties of Rogers materials, special care is required during processing:
Lamination
Precise pressure control avoids delamination or warping.
Use appropriate adhesives (e.g., prepregs) for strong layer bonding.
Drilling
Use coated drill bits (e.g., diamond-coated) to minimize friction and damage.
Control drill speed and feed rate to prevent tearing or excessive burrs.
Cutting and Shaping
Laser cutting is preferred for high precision and minimal stress.
Post-cutting edge polishing reduces burrs and stress.
Surface Treatment
Use mild cleaning solutions as Rogers materials are sensitive to chemicals.
Carefully control plating parameters to ensure uniformity.
Soldering
Preheat to recommended temperatures (100°C to 120°C) to avoid warping.
Use low-temperature solder alloys to reduce thermal stress.
Plating and Etching
Control etching time and acid concentration to avoid over-etching.
Rogers high-frequency multilayer PCBs offer exceptional performance for high-frequency and high-power applications. Proper processing techniques must be employed to ensure product quality and stable electrical performance.
