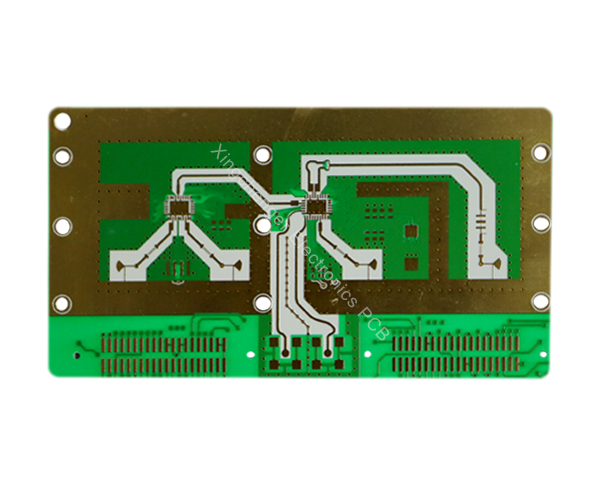

Rogers Antenna PCB

Description

Rogers antenna PCBs are widely used in modern wireless communication and radar systems due to their excellent high-frequency performance and stable electrical characteristics. They are particularly suitable for antenna applications requiring low loss and high precision, such as 5G communication, satellite communication, automotive radar, and IoT devices.
1. Key Features of Rogers Antenna PCBs
 1.1 Electrical Performance
Low Dielectric Constant (Dk): Rogers materials typically have Dk values between 2.2 and 3.5, supporting efficient signal transmission, reduced delay, and stability across frequencies.
Low Dissipation Factor (Df): Df values are extremely low, usually less than 0.002, ensuring minimal signal attenuation at high frequencies.
Signal Integrity: The materials provide excellent signal integrity, making them ideal for complex high-frequency antenna designs.
1.2 Thermal Performance
Glass Transition Temperature (Tg): High Tg values ensure material stability in high-temperature environments, enabling antenna reliability under harsh conditions.
Thermal Conductivity: Good thermal conductivity aids in heat dissipation, reducing high-frequency losses.
Coefficient of Thermal Expansion (CTE): A CTE close to copper ensures physical and electrical stability during thermal cycles.
 1.3 Environmental Adaptability
Low Moisture Absorption: Extremely low moisture absorption ensures consistent performance in humid conditions, making it suitable for marine communication, outdoor devices, and harsh environments.
Flame Retardancy: Compliant with UL94 V-0 standards, ensuring material safety.
2. Manufacturing and Design Advantages
 2.1 Material Processing
Ease of Fabrication: Rogers materials exhibit high stability in processes like drilling, etching, and plating.
Lamination Capability: Supports multilayer designs for complex antenna systems.
Versatility: Compatible with other PCB substrates, enabling hybrid antenna designs.
 2.2 Precise Impedance Control
High-Precision Impedance Matching: Rogers materials excel in impedance consistency, critical for efficient signal transmission in high-frequency antenna designs.
 2.3 Dimensional Stability
High Mechanical Strength: Maintains dimensional accuracy during fabrication and operation, avoiding warping or deformation.
3. Applications
 3.1 Wireless Communication
5G Antennas: Rogers materials support wideband, high-gain, and low-loss designs for 5G antennas.
Wi-Fi Devices: Ideal for Wi-Fi routers and base station antennas due to high-speed transmission capabilities.
 3.2 Aerospace
Satellite Communication: Maintains stable performance under high-frequency conditions, suitable for satellite antennas and related devices.
Airborne Radar: Suitable for onboard antennas and radar systems, ensuring high-precision signal reception and transmission.
 3.3 Automotive Electronics
On-Board Radar: Widely used in millimeter-wave radar antennas for autonomous driving and ADAS systems.
 3.4 IoT and Consumer Electronics
IoT Antennas: Supports miniaturized antenna designs, ideal for smart home devices and wearables.
 3.5 Military and Defense
Military Radar Systems: Suitable for high-performance radar and missile guidance systems.
4. Manufacturing Challenges
High Precision Requirements: Antenna impedance matching and intricate designs demand highly accurate processing.
Material Compatibility: Ensuring compatibility in hybrid multilayer PCB designs.
Thermal Management: Effective heat dissipation requires optimized materials and design processes.
Testing Complexity: High-frequency testing equipment is expensive, posing challenges for production costs and quality control.
Rogers antenna PCBs are the cornerstone of advanced communication and radar technologies, offering unparalleled performance, reliability, and adaptability for a wide range of applications.
