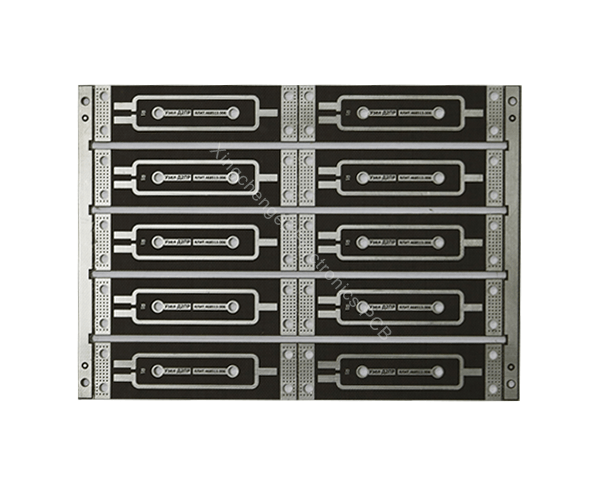

Rogers 5880 PCB

Description

Rogers 5880 is a high-performance high-frequency PCB material widely used in high-speed digital circuits, radio frequency communications, radar systems, satellite communications, and other high-frequency, high-speed signal processing applications. Manufactured by Rogers Corporation, Rogers 5880 is specifically designed for high-frequency and high-speed circuits, offering low dielectric constant (εr), low loss factor (Df), high thermal stability, and excellent electrical properties. As a result, Rogers 5880 has become an essential material for designing high-performance wireless communication systems, power electronics products, and aerospace components.
This article provides a detailed exploration of the properties of Rogers 5880 material, its applications, manufacturing processes, and advantages in high-frequency PCB design, helping engineers and designers better understand how to leverage this material to enhance circuit board performance and reliability.
1. Material Properties of Rogers 5880
As a PCB material designed for high-frequency and high-speed applications, Rogers 5880 offers the following key electrical and thermal properties:
 1.1 Low Dielectric Constant (εr)
Rogers 5880 has a dielectric constant of around 2.2, which is lower than that of traditional FR-4 (with εr typically ranging from 4.5 to 5.0). The low dielectric constant reduces signal attenuation at high frequencies, making it ideal for high-frequency signal transmission. This characteristic is particularly beneficial for high-speed digital circuits, radio frequency, and microwave applications.
 1.2 Low Loss Factor (Df)
Rogers 5880 has a very low loss factor (Df), typically around 0.0025. This low loss factor results in minimal signal loss, which improves signal integrity and overall system performance. In high-speed, high-frequency applications, low Df is crucial for reducing signal distortion and maintaining high signal quality.
 1.3 Excellent Thermal Stability
Rogers 5880 has excellent thermal stability, with a glass transition temperature (Tg) typically above 280°C. It can withstand higher temperature environments without degrading its electrical performance, which makes it suitable for high-temperature applications. Additionally, Rogers 5880 has a low coefficient of thermal expansion (CTE), closely matching that of copper, which reduces the risk of thermal stress and material warping.
 1.4 Low Dielectric Loss
The low dielectric loss of Rogers 5880 improves signal transmission efficiency by reducing signal attenuation and distortion. This property makes it particularly suitable for RF and microwave applications, where signal integrity is crucial.
2. Applications of Rogers 5880
Due to its superior high-frequency performance, Rogers 5880 is widely used in various high-frequency and high-speed circuit designs. Some of the key application areas include:
 2.1 Radio Frequency (RF) and Microwave Circuits
Rogers 5880 is ideal for RF and microwave circuits due to its low dielectric constant and low loss factor, which help reduce signal attenuation and maintain signal integrity. It is commonly used in communication systems, radar, satellite communication, and other high-frequency applications.
 2.2 High-Speed Digital Circuits
High-speed digital circuits require reliable signal transmission and minimal distortion. Rogers 5880 is widely used in high-speed digital systems, data transmission equipment, computer and server motherboards, and other applications where high data rates and low signal loss are critical.
 2.3 5G Communication
With the growing demand for 5G technology, high-frequency materials like Rogers 5880 are increasingly used in 5G base stations, antenna arrays, and other 5G communication systems due to their low loss and high thermal stability.
 2.4 Aerospace and Satellite Communications
Rogers 5880 is also used in aerospace and satellite communication applications, where high-frequency signals and harsh environmental conditions require stable and reliable PCB performance.
3. Manufacturing Process of Rogers 5880
The manufacturing process of Rogers 5880 is more complex than that of traditional FR-4, as the material’s properties require more precise control during production. The following are key considerations in the PCB manufacturing process for Rogers 5880:
 3.1 Lamination Process
The lamination temperature for Rogers 5880 typically ranges from 180°C to 210°C. The temperature must be carefully controlled, as excessive heat can degrade the material’s properties. Uniform temperature distribution is crucial to prevent overheating, which could compromise performance or cause warping.
 3.2 Interlayer Connectivity
Interlayer bonding is critical for ensuring good electrical performance and reliability. Poor interlayer bonding can result in signal loss, reflection, or crosstalk, especially in high-frequency applications. Rogers 5880 requires precise lamination techniques to ensure strong, reliable interlayer connections.
 3.3 Drilling and Etching
The drilling and etching processes for Rogers 5880 are more challenging compared to traditional FR-4 due to its higher hardness and different thermal expansion properties. Specialized equipment is necessary to ensure precise hole drilling and accurate etching, avoiding damage to the material or errors in the circuit pattern.
 3.4 Surface Treatment
Surface treatments such as gold plating, immersion silver, or electroless nickel immersion gold (ENIG) are commonly applied to Rogers 5880 to improve solderability and protect the surface. The choice of surface treatment depends on the specific application and performance requirements.
4. Comparison with Traditional FR-4
Rogers 5880 offers distinct advantages over traditional FR-4 in high-frequency applications. The following table compares the key properties of both materials:

From this comparison, it is clear that Rogers 5880 excels in high-frequency applications, particularly due to its lower dielectric constant, lower loss factor, and higher thermal stability. However, FR-4 remains a dominant material in many low- and medium-frequency applications due to its lower cost.
Rogers 5880 is an outstanding high-frequency PCB material, offering low dielectric constant, low loss factor, excellent thermal stability, and superior electrical performance. These properties make it ideal for applications in RF communications, microwave circuits, 5G communication, aerospace, and satellite systems. While its manufacturing process is more complex and its cost higher than traditional FR-4, its performance advantages make it irreplaceable in many high-performance, high-reliability applications.
