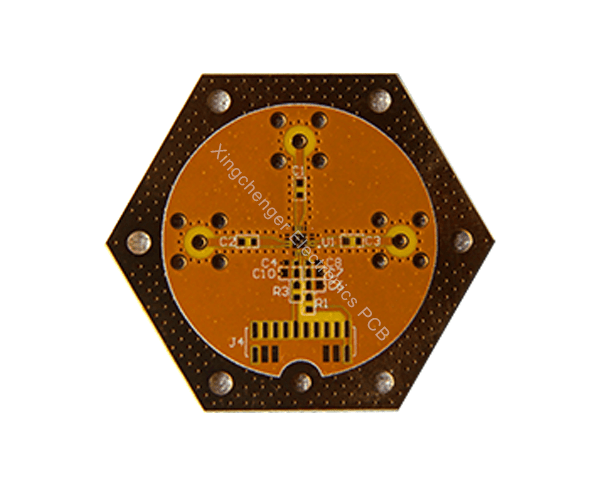

Rogers 5880 Gold-Plated PCB

Description

The Rogers 5880 gold-plated PCB is a high-performance printed circuit board that uses Rogers 5880 high-frequency material as the substrate and is processed with a gold-plating technique. It is widely applied in high-frequency communication equipment, radar systems, satellite communications, aerospace, and 5G technology. Its excellent dielectric properties, low-loss characteristics, and high reliability make it an ideal choice for high-frequency applications. This article provides a detailed introduction to its material properties, process flow, performance features, application fields, and advantages.
1. Material Properties of Rogers 5880
Rogers 5880 is a high-frequency circuit material based on PTFE (polytetrafluoroethylene) with the following key characteristics:
Extremely Low Dielectric Constant (Dk)
Rogers 5880 has a dielectric constant of 2.20 ± 0.02, making it one of the most stable high-frequency materials available. This stability is particularly important in high-frequency and ultra-high-frequency environments to reduce signal delay.
Extremely Low Dielectric Loss (Df)
With a dielectric loss value of only 0.0009 (at 10 GHz), Rogers 5880 allows for minimal energy loss during high-frequency signal transmission, ensuring high signal integrity and efficiency.
Excellent Thermal Stability
Rogers 5880 maintains its mechanical and electrical properties under high-temperature conditions, with an operational temperature range from -200°C to +200°C. This makes it suitable for use in extreme environments.
High Chemical Stability and Corrosion Resistance
PTFE is highly resistant to chemical corrosion, making Rogers 5880 well-suited for use in demanding and harsh operating environments.
Low Moisture Absorption
With a moisture absorption rate of less than 0.02%, Rogers 5880 maintains excellent electrical performance even in high-humidity environments.
2. Overview of the Gold-Plating Process
Gold plating is a process in which a thin layer of gold is chemically deposited onto the PCB surface. The gold-plating process is critical in Rogers 5880 PCBs due to its ability to enhance oxidation resistance, conductivity, and soldering reliability. Key benefits of gold plating include:
Improved Surface Flatness
The gold-plating process results in a smoother PCB surface, which is particularly beneficial for microwave transmission lines and precision circuit designs in high-frequency applications.
Enhanced Oxidation Resistance
The gold layer provides strong resistance to oxidation, preventing the PCB surface from deteriorating due to long-term exposure to air and improving overall product reliability.
Improved Soldering Performance
The gold-plated layer enhances wettability during soldering, reducing the occurrence of soldering defects. This is especially useful for high-density PCBs and precise component soldering.
3. Performance Features of Rogers 5880 Gold-Plated PCB
Exceptional High-Frequency Performance
Rogers 5880 gold-plated PCBs are ideal for high-frequency environments due to their low dielectric constant and low dielectric loss. They ensure stable and efficient signal transmission, making them suitable for high-precision RF applications.
Stable Impedance Control
Impedance matching is critical for high-frequency circuits. The uniformity of the Rogers 5880 material and the precision of the gold-plating process ensure consistent impedance characteristics, reducing signal distortion.
Outstanding Environmental Resistance
The combination of Rogers 5880’s low moisture absorption and high thermal resistance, along with the protective properties of the gold plating, ensures that the PCB maintains its performance and reliability in harsh environments.
Ease of Processing and Assembly
Although PTFE-based materials are known to be challenging to machine, advanced manufacturing techniques enable Rogers 5880 PCBs to achieve good mechanical strength and compatibility with various processing techniques. Gold plating further improves the surface quality, ensuring efficient soldering and assembly.
Extended Service Life
The gold-plating process not only improves soldering reliability but also significantly extends the PCB’s lifespan, making it a preferred choice for high-reliability applications.
4. Application Fields
Rogers 5880 gold-plated PCBs are widely used across various high-tech fields:
5G Communication Equipment
These PCBs support high-frequency bands, such as millimeter-wave frequencies, making them essential for RF front-end modules and antenna arrays in 5G communication systems.
Radar Systems
The Rogers 5880 gold-plated PCB meets the high-frequency and low-loss requirements of automotive millimeter-wave radar and aerospace radar systems.
Satellite Communications
Thanks to its high stability and low-loss characteristics, Rogers 5880 gold-plated PCBs are critical in satellite antennas and power amplifier modules.
Aerospace Equipment
Aerospace systems require PCBs that can withstand extreme environmental conditions. The Rogers 5880 material, with its high thermal resistance and low dielectric loss, is a preferred choice in such applications.
Microwave and RF Circuits
Rogers 5880 gold-plated PCBs are widely used in microwave filters, power amplifiers, mixers, and other RF components to ensure optimal performance.
5. Advantages of Rogers 5880 Gold-Plated PCB
Outstanding High-Frequency Performance
The low dielectric loss and stable dielectric constant make Rogers 5880 gold-plated PCBs the top choice for high-frequency applications, ensuring signal integrity and efficient transmission.
Excellent Environmental Adaptability
With low moisture absorption and high thermal resistance, Rogers 5880 gold-plated PCBs maintain excellent performance in a wide range of environmental conditions, including high humidity and extreme temperatures.
Reliable Manufacturing Process
The gold-plating process provides a smooth surface, strong oxidation resistance, and excellent soldering reliability, making the PCB suitable for high-precision applications.
Wide Range of Applications
The exceptional performance and reliability of Rogers 5880 gold-plated PCBs make them suitable for a variety of fields, including communication, aerospace, and satellite technologies.
Rogers 5880 gold-plated PCBs combine high-performance materials with advanced manufacturing techniques, resulting in exceptional signal integrity, environmental resistance, and reliability. These PCBs meet the stringent requirements of modern high-tech industries, making them indispensable in high-frequency and precision applications such as 5G communication, radar systems, satellite communications, and aerospace technologies.
