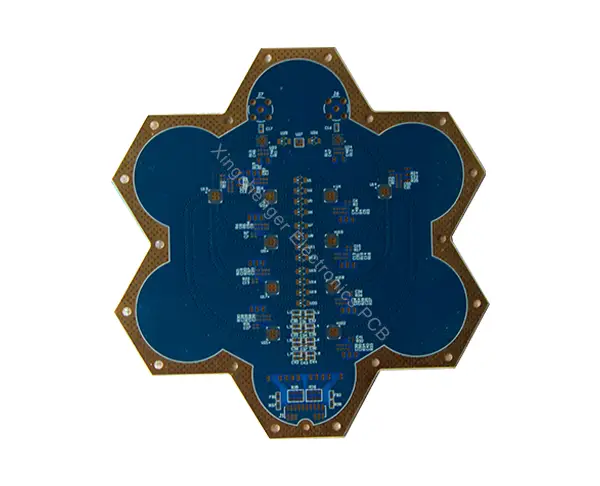

Rogers 5870 PCB

Description

Rogers 5870 PCB is a type of printed circuit board (PCB) made from RT/duroid® 5870 high-frequency material developed by Rogers Corporation. This material is based on polytetrafluoroethylene (PTFE) and reinforced with glass microfibers, designed specifically for high-frequency and RF applications. With its superior electrical properties, low-loss characteristics, and high reliability, Rogers 5870 PCB is widely used in telecommunications, aerospace, radar systems, satellite equipment, and other high-frequency, high-precision electronic fields. This article provides a detailed introduction to its material properties, performance indicators, manufacturing process, application areas, and future development directions.
1. Material Properties of Rogers 5870
RT/duroid® 5870 is a unique high-frequency substrate with the following features:
Extremely Low Dielectric Constant (Dk)
Rogers 5870 has a dielectric constant of 2.33 (±0.02), which remains highly stable across a wide frequency range. This stability makes it an ideal choice for ensuring delay control and signal integrity in high-frequency signal transmission.
Ultra-Low Dielectric Loss (Df)
With a dielectric loss of only 0.0012 at 10 GHz, it significantly reduces energy loss in high-frequency environments, making it one of the best materials for microwave and RF applications.
Excellent Mechanical Properties
Enhanced by glass microfiber reinforcement, Rogers 5870 offers outstanding dimensional stability, warp resistance, and machining performance.
Low Moisture Absorption
With a moisture absorption rate below 0.02%, Rogers 5870 maintains excellent electrical performance in high-humidity or wet environments.
Wide Temperature Compatibility
This material can operate within a broad temperature range, from -200°C to +200°C, meeting stringent requirements in extreme environments.
Lightweight Design
With a low density of 1.37 g/cm³, it is especially suitable for weight-sensitive aerospace and satellite equipment.
2. Performance Features of Rogers 5870 PCB
High-Frequency Signal Integrity
Rogers 5870 PCB ensures signal integrity in high-frequency applications due to its low dielectric constant and ultra-low dielectric loss, minimizing signal attenuation and noise interference.
Precise Impedance Control
Impedance matching is critical for high-frequency circuits. The uniformity of the 5870 material and high-precision manufacturing processes ensure precise impedance control, making it ideal for RF and microwave applications.
Stable Environmental Adaptability
With low moisture absorption and high chemical stability, this PCB maintains long-term performance in humid, high-temperature, or chemically harsh environments.
Excellent Machining Performance
Although PTFE materials are typically challenging to machine, the glass microfiber reinforcement in 5870 enhances mechanical strength and machining adaptability, supporting complex circuit designs.
Versatility and Reliability
Rogers 5870 PCB excels not only in high-frequency and RF applications but also in high-temperature environments and reliability-critical scenarios.
3. Manufacturing Process of Rogers 5870 PCB
Manufacturing Rogers 5870 PCBs requires precise processes to maximize their high-performance characteristics. Key steps include:
Material Selection
Choose appropriate copper foil thickness and stack-up structure based on specific application requirements. The 5870 material can accommodate single-layer, double-layer, and multi-layer PCB designs.
Pattern Etching
High-precision etching techniques are used to create circuit patterns, ensuring high-quality signal transmission. Line width and spacing must be strictly controlled during etching.
Lamination Process
Multi-layer PCBs undergo precise lamination to ensure insulation and reliability between layers.
Surface Treatment
Techniques like chemical nickel-gold plating or other anti-oxidation treatments enhance solderability and corrosion resistance.
Impedance Testing
Dedicated impedance testing equipment is used to ensure the PCB’s impedance values meet design standards.
Final Inspection
This includes dimensional measurements, electrical performance testing, and environmental resistance checks to ensure the product meets customer requirements.
4. Application Fields of Rogers 5870 PCB
Rogers 5870 PCBs are widely used in the following high-tech fields:
Telecommunication Equipment
Used in RF modules and antenna arrays for 5G base stations, microwave communication systems, and satellite communication equipment.
Aerospace
Lightweight and high-performance 5870 PCBs are used in radar systems, navigation devices, and communication modules for spacecraft and aviation systems.
Radar Systems
RF signal processing units in automotive millimeter-wave radar and defense systems frequently use 5870 PCBs.
Microwave and RF Circuits
Components like power amplifiers, filters, and mixers utilize 5870 PCBs for low-loss, high-efficiency performance.
Medical Devices
Used in high-precision medical equipment such as MRI systems for RF signal transmission.
5. Future Development Directions of Rogers 5870 PCB
As high-frequency communication technologies advance and the demand for lightweight, high-reliability materials grows, the future development trends for Rogers 5870 PCBs include:
Support for Higher Frequencies
With the emergence of terahertz communication and higher-frequency devices, 5870 PCBs will need further optimization to support broader frequency ranges.
Low-Cost, High-Performance Materials
Future research will focus on reducing manufacturing costs while maintaining high-frequency performance.
Development of Eco-Friendly Materials
The use of recyclable, environmentally friendly materials to reduce the environmental impact of production will be a key direction in the future.
Rogers 5870 PCBs combine high-frequency performance, environmental adaptability, and reliability, making them a critical component in advanced technologies like 5G communication, aerospace systems, and medical equipment. Their superior characteristics position them as an essential solution for the future of high-frequency electronics.
