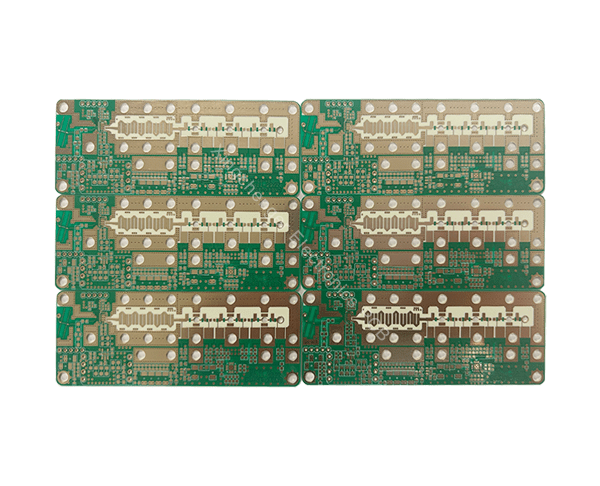

Rogers 4003C PCB

Description

As the performance demands of electronic devices increase, especially in high-frequency and RF (radio frequency) fields, the requirements for PCB substrate materials become more stringent. Rogers 4003C, as a high-performance, high-frequency substrate, is widely used in wireless communications, aerospace, automotive radar, and high-frequency digital circuits. This article provides a detailed introduction to the characteristics, advantages, application fields, design considerations, and manufacturing processes of Rogers 4003C PCBs.
1. Basic Characteristics of Rogers 4003C Material
Rogers 4003C is a hydrocarbon-based, ceramic-filled high-frequency PCB substrate. Its main features include:
Stable Dielectric Constant (Dk)
With a Dk of 3.55±0.05 (@10GHz), Rogers 4003C exhibits excellent stability over a wide frequency range, making it ideal for high-frequency signal transmission.
Low Dissipation Factor (Df)
The Df of Rogers 4003C is as low as 0.0027 (@10GHz), significantly reducing energy loss during signal transmission and ensuring signal integrity.
Thermal Stability
Rogers 4003C has a high glass transition temperature (Tg) and excellent thermal conductivity, making it suitable for high-power-density and high-temperature environments.
Superior Mechanical Properties
The material features a low coefficient of thermal expansion (CTE), which matches well with copper, improving the reliability of multilayer PCBs.
Low Moisture Absorption
With a water absorption rate of only 0.06%, Rogers 4003C maintains stable electrical performance in humid environments.
Cost-Effectiveness
Compared to other high-frequency materials (e.g., Rogers 5880), Rogers 4003C offers higher cost efficiency, making it suitable for mass production.
2. Key Advantages of Rogers 4003C
Exceptional High-Frequency Performance
Thanks to its low Dk and low Df properties, Rogers 4003C ensures excellent signal integrity and transmission efficiency in high-frequency and microwave applications.
Strong Process Compatibility
Rogers 4003C is compatible with standard FR4 manufacturing processes, requiring no special equipment and reducing production costs.
High Temperature Resistance
The material maintains stable electrical and mechanical performance in high-temperature environments, ideal for high-power RF circuits and automotive electronics.
Ease of Processing
Unlike many PTFE-based substrates, Rogers 4003C is easier to drill and etch, offering superior mechanical processability.
Wide Frequency Range Adaptability
Supporting frequencies from MHz to GHz, Rogers 4003C is a perfect choice for wireless communication and radar systems.
3. Typical Applications of Rogers 4003C
Wireless Communication Devices
Base station antennas and microwave receiver modules.
RF amplifiers and filters.
Automotive Electronics
Core circuits in millimeter-wave radar systems.
High-speed signal processing modules.
Aerospace
High-frequency PCBs for navigation systems, satellite communications, and radar equipment.
Electronic warfare and signal processing modules.
High-Frequency Digital Circuits
Core PCBs for high-speed data transmission and storage devices.
High-frequency server motherboards and backplanes.
Medical Equipment
High-frequency signal processing modules in MRI systems.
RF treatment equipment.
4. Design Considerations for Rogers 4003C PCBs
When designing high-frequency PCBs with Rogers 4003C, consider the following:
Impedance Control
Precisely calculate transmission line impedance, commonly 50-ohm or 100-ohm differential impedance, to ensure signal integrity.
Conduct electromagnetic simulation during the design phase to verify impedance matching.
Layer Stack-Up Design
Optimize the distance between signal layers and ground planes to reduce electromagnetic interference (EMI).
Ensure uniform dielectric thickness in multilayer boards to prevent signal distortion.
Trace Optimization
Minimize the length of high-speed signal traces to avoid unnecessary reflection and loss.
Use smooth trace transitions to reduce electromagnetic radiation.
Thermal Management Design
For high-power applications, incorporate thermal vias or heat-spreading layers to enhance thermal performance.
Use heatsinks near high-power RF modules.
Copper Foil Selection
For high-frequency signals, use smooth, low-roughness copper foil to minimize signal loss.
5. Manufacturing Processes for Rogers 4003C PCBs
While Rogers 4003C is compatible with traditional FR4 processes, certain specific requirements should be considered:
Drilling Process
Use high-precision drilling equipment to avoid microcracks.
Mechanical or laser drilling ensures high-quality hole walls.
Etching Process
Advanced etching techniques are recommended for consistent trace widths in high-frequency circuits.
Surface Treatment
Surface finishes like ENIG or immersion silver improve conductivity and solderability.
Multilayer Lamination
Control lamination temperature and pressure during multilayer board production to ensure layer adhesion.
Use low-shrinkage bonding materials to prevent warping.
Quality Testing
Perform comprehensive tests for dielectric performance, impedance uniformity, and mechanical strength after production.
Rogers 4003C has become one of the most preferred materials for high-frequency PCB designs due to its outstanding high-frequency performance, stable electrical characteristics, and excellent processability. Whether in wireless communications, automotive radar, aerospace, or high-frequency digital circuits, Rogers 4003C provides reliable solutions. With proper design and manufacturing processes, Rogers 4003C PCBs can meet the demanding requirements of high-frequency and RF applications, supporting the development of modern electronic systems.
