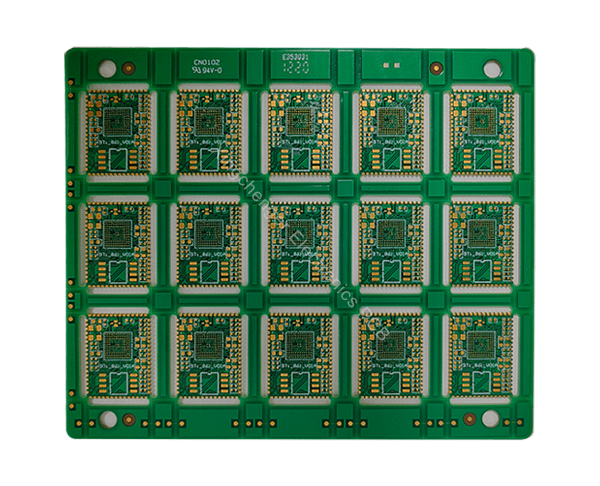

Rogers 3003 PCB

Description

The Rogers 3003 PCB is a high-performance printed circuit board made from RT/duroid® 3003 high-frequency material developed by Rogers Corporation. This material, based on PTFE and enhanced with ceramic fillers, offers stable dielectric properties, extremely low loss, and excellent thermal stability. It is widely used in high-frequency communication, radar systems, RF equipment, and satellite communication. This article provides a detailed introduction to the material properties, performance characteristics, manufacturing processes, application areas, and future development trends of Rogers 3003 PCB.
1. Material Properties of Rogers 3003
RT/duroid® 3003 is a high-performance ceramic-filled PTFE substrate with the following characteristics:
Stable Dielectric Constant (Dk)
The dielectric constant of Rogers 3003 is 3.00 (±0.04), which remains highly stable across a wide frequency range. This stability makes it ideal for high-frequency signal transmission, significantly reducing signal loss.
Ultra-Low Dielectric Loss (Df)
With a dielectric loss of only 0.0013 (at 10 GHz), it ensures efficient transmission of high-frequency signals, making it an excellent material for microwave and RF applications.
Excellent Mechanical Properties
The ceramic-filled composition enhances dimensional stability, tensile strength, and warp resistance, making it suitable for complex designs.
Low Coefficient of Thermal Expansion (CTE)
The thermal expansion coefficient of Rogers 3003 is similar to that of copper (~17 ppm/°C), making it ideal for multilayer PCB designs, especially in high-temperature applications.
Low Moisture Absorption
With a moisture absorption rate below 0.04%, it maintains stable electrical properties even in high-humidity environments.
High-Temperature Resistance
The material performs reliably across a wide temperature range from -200°C to +200°C, making it suitable for harsh environments.
2. Performance Characteristics of Rogers 3003 PCB
Outstanding High-Frequency Performance
Rogers 3003 PCB provides low insertion loss and high signal integrity in high-frequency environments due to its stable dielectric constant and low dielectric loss.
Reliable Impedance Control
The uniform dielectric properties and high-precision processing enable precise impedance control, meeting the high demands of RF and microwave equipment.
Superior Thermal Stability
The low thermal expansion coefficient ensures minimal deformation in high-temperature environments, making it suitable for multilayer structures and applications requiring high thermal stability.
Low-Loss Signal Transmission
The extremely low dielectric loss ensures minimal signal attenuation, making it ideal for high-performance microwave circuits, filters, and antenna arrays.
Excellent Environmental Adaptability
With low moisture absorption and resistance to chemical corrosion, Rogers 3003 PCB maintains long-term reliability in harsh environments.
3. Manufacturing Process of Rogers 3003 PCB
Manufacturing Rogers 3003 PCBs requires precise processes to maximize its performance advantages. Key steps include:
Material Preparation
Select the appropriate substrate thickness and copper foil type based on design requirements, with common thicknesses ranging from 0.254mm to 3.175mm.
Pattern Etching
High-precision etching is used to create conductive patterns, ensuring high accuracy and consistency in signal paths.
Lamination Process
Multilayer PCBs require precise lamination, with strict control over temperature and pressure to prevent material deformation or performance degradation.
Surface Treatment
Surface treatment methods such as gold plating, tin plating, or OSP (Organic Solderability Preservative) enhance solderability and corrosion resistance.
Impedance and Electrical Performance Testing
Specialized instruments are used to test impedance and electrical performance to ensure the PCB meets design specifications.
Final Quality Inspection
This includes dimensional checks, visual inspection, and thermal shock testing to ensure consistency in performance and quality.
4. Application Areas of Rogers 3003 PCB
Thanks to its excellent properties, Rogers 3003 PCB is widely used in the following fields:
High-Frequency Communication Equipment
Used in RF modules and antenna arrays for 5G base stations, wireless telecommunication, and microwave transmission systems.
Satellite Communication
Its high stability and low-loss properties make it ideal for satellite antennas, filters, and power amplifier modules.
Radar Systems
Used in automotive millimeter-wave radar and aerospace radar for precise signal processing and low-loss transmission.
RF and Microwave Circuits
Rogers 3003 PCBs are widely used in filters, mixers, power dividers, and low-noise amplifiers for RF applications.
Medical Electronics
Used in high-precision medical equipment such as MRI systems for RF signal processing.
5. Future Development Trends of Rogers 3003 PCB
With the development of high-frequency communication and millimeter-wave technologies, Rogers 3003 PCB is expected to evolve in the following directions:
Optimization for Higher Frequencies
To meet the demands of higher-frequency communication (e.g., terahertz waves), the material will be further optimized for low loss and superior dielectric performance.
Cost Reduction
Efforts will focus on reducing production costs while maintaining high performance to meet large-scale industrial production needs.
Eco-Friendly Material Development
Developing recyclable and environmentally friendly materials will be a key direction in response to stricter environmental regulations.
Integration with System Modules
As system modularization trends continue, Rogers 3003 PCBs may become more integrated with RF components and microwave devices.
Rogers 3003 PCB combines high-frequency performance, environmental adaptability, and reliability, making it an essential component in advanced technologies such as 5G communication, aerospace systems, and medical equipment. Its exceptional characteristics position it as a vital solution for the future of high-frequency electronics.
