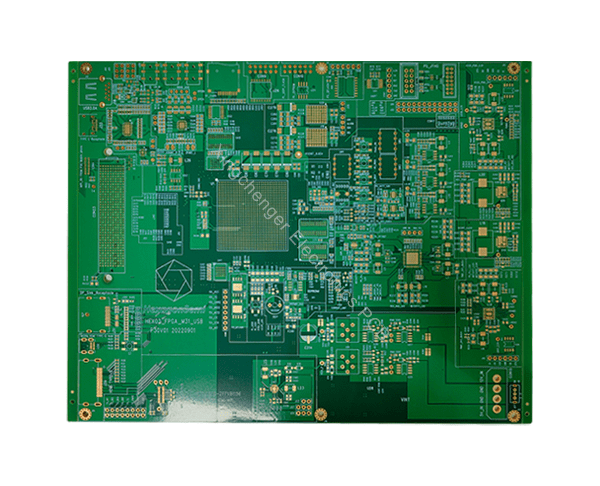

Rogers 3003 4-Layer PCB

Description

Rogers 3003 is a material widely used in high-frequency and high-speed printed circuit boards (PCBs). It is one of the high-performance PCB substrates produced by Rogers Corporation. This material features halogen-free design and excellent electrical, mechanical, and thermal properties, making it ideal for applications in RF (radio frequency), microwave communications, satellite communications, radar, military systems, medical devices, and automotive electronics.
As a PCB substrate based on PTFE (polytetrafluoroethylene) composite material, Rogers 3003 exhibits high dielectric constant and low dielectric loss factor, which helps to reduce signal attenuation and noise interference, improving circuit signal integrity. Additionally, its excellent thermal conductivity ensures effective heat dissipation, preventing overheating and ensuring the stability of electronic devices in high-speed and high-power environments.
1. Structure and Composition of Rogers 3003 PCB
The primary substrate of Rogers 3003 PCB consists of a PTFE composite material. PTFE is known for its excellent electrical insulation properties and chemical stability, making it an essential material for manufacturing high-performance PCBs. One of the key features of Rogers 3003 is its low dielectric constant (Dk) and low loss factor (Df). Dk refers to the material’s resistance to electromagnetic wave propagation, while Df indicates the amount of energy lost during signal transmission through the material.
The Basic Composition of Rogers 3003 PCB Includes:
PTFE Substrate: Provides excellent electrical and thermal performance, ensuring high-quality signal transmission.
Glass Fiber Reinforcement: Enhances the mechanical strength and bending resistance of the substrate, increasing the stability of the PCB.
Copper Foil Layer: Used to create conductive paths for the circuits, and the thickness and treatment of the copper foil affect the PCB’s electrical performance.
2. Key Performance Features of Rogers 3003 PCB
Excellent Electrical Performance: Rogers 3003 PCB has low dielectric constant and low loss factor, ensuring stability and accuracy in high-frequency signal transmission. The low loss factor helps reduce signal loss, particularly in high-frequency and microwave applications, ensuring signal integrity.
Good Thermal Performance: Rogers 3003 offers good thermal conductivity, efficiently dissipating heat generated by the PCB, reducing the risk of overheating, and improving the reliability of the PCB. Its thermal conductivity typically ranges from 0.6 W/m·K to 1.0 W/m·K, making it suitable for applications requiring high heat dissipation.
Strong Mechanical Properties: The material has excellent mechanical properties, with high wear resistance and compressive strength. The glass fiber-reinforced composite material improves the PCB’s strength, preventing deformation caused by environmental stress.
High Chemical Resistance: Rogers 3003 PCB exhibits strong resistance to various chemicals, making it suitable for harsh working environments.
High-Frequency Characteristics: Due to its low dielectric constant, Rogers 3003 performs exceptionally well in high-frequency applications. Particularly in RF and microwave communications, it helps reduce signal attenuation and improves signal quality.
3. Applications of Rogers 3003 PCB
RF and Microwave Communication: Rogers 3003 PCB is ideal for RF and microwave applications due to its excellent electrical properties. Its low dielectric constant and low loss factor provide superior signal transmission performance in high-frequency applications.
Satellite Communications: In satellite communication systems, the performance requirements for PCBs are extremely high. Rogers 3003 PCB meets these demands with its superior electrical properties and thermal stability.
Radar Systems: Radar systems require high-frequency, high-precision PCBs to ensure the transmission and reflection of signals. Rogers 3003 is widely used in radar systems due to its low dielectric constant and low loss characteristics.
Military Electronics: Military electronics demand high performance, especially in extreme environments where the PCB must maintain high stability and reliability. Rogers 3003 PCB, with its excellent electrical and thermal stability, is commonly used in military applications.
Medical Devices: In medical devices, signal accuracy is critical, especially in medical imaging and diagnostic equipment. Rogers 3003 PCB provides stable signal transmission, ensuring the high-performance operation of these devices.
Automotive Electronics: With the increasing sophistication of automotive electronics, especially in autonomous vehicles and electric vehicles, there is a growing demand for high-frequency, high-power PCBs. Rogers 3003 PCB meets these needs and is widely used in automotive radar, wireless communications, and battery management systems.
4. Advantages and Challenges of Rogers 3003 PCB
Advantages:
High Electrical Performance: The low dielectric constant and low loss factor ensure stable and efficient signal transmission.
Good Thermal Stability: Effective heat dissipation makes it suitable for high-power, high-frequency environments.
Excellent Chemical Resistance: Stable operation in harsh environments over extended periods.
Wide Applicability: Suitable for a wide range of high-tech applications, including RF, microwave, satellite communication, and radar.
Challenges:
High Cost: Rogers 3003 PCB is more expensive than traditional FR4 materials, limiting its use in low-cost applications.
Processing Difficulty: The manufacturing process for Rogers 3003 requires advanced equipment and technology, making it more complex to produce.
Material Brittleness: Although it has strong mechanical properties, PTFE materials can be brittle, making them susceptible to environmental stress and potential risks in extreme conditions.
Rogers 3003 PCB plays an essential role in high-frequency and high-performance applications due to its excellent electrical, thermal, and chemical properties. While its high manufacturing cost and processing challenges limit its use in some areas, its unique advantages make it the material of choice in many high-tech industries. As technology continues to advance, the use of Rogers 3003 PCB is expected to expand, becoming a mainstream choice for next-generation high-performance PCBs.
