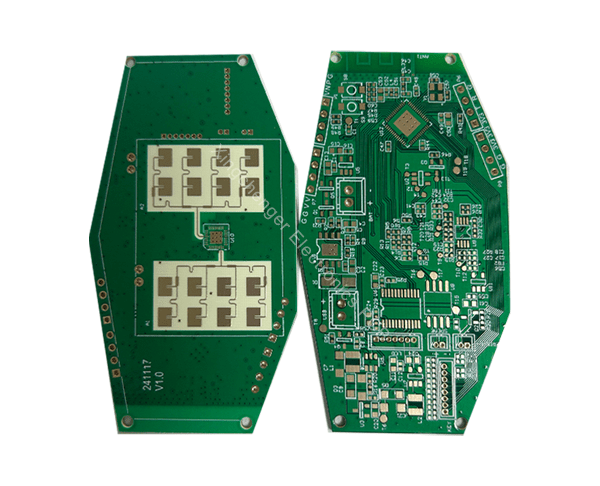

RO4003C+FR4 hybrid PCB

Description

4-layer RO4003C+FR4 hybrid PCB combines RO4003C high-frequency material with FR4, a cost-effective and versatile material, to create a multilayer printed circuit board. RO4003C, manufactured by Rogers Corporation, is known for its low dielectric constant (Dk) and low dielectric loss (Df), making it ideal for high-frequency applications. FR4, on the other hand, is a common glass-reinforced epoxy laminate material widely used for general electronic circuits. This hybrid design balances high-frequency performance with cost optimization.
Characteristics of RO4003C and FR4 Materials
1. RO4003C Features
Low Dielectric Constant (Dk): Typically ranging from 2.55 to 3.00, suitable for stable high-frequency signal transmission.
Low Dielectric Loss (Df): Around 0.002 to 0.003, minimizing energy loss in signals.
Excellent Thermal Stability: A coefficient of thermal expansion (CTE) close to copper ensures reliable performance under thermal cycling.
Mechanical Stability: Maintains high mechanical strength in high-frequency and high-temperature environments.
Processability: Compatible with conventional PCB manufacturing techniques.
2. FR4 Features
Cost-Effectiveness: FR4 is an economical material widely used in standard PCB applications.
Mechanical Strength: Provides good structural support and rigidity.
Thermal Stability: Suitable for electronic circuits operating under moderate temperature conditions.
Versatile Process Compatibility: Supports drilling, plating, and lamination processes.
Structure and Advantages of Hybrid PCBs
Hybrid PCBs typically have the following structure:
Top and Bottom Layers: Made of RO4003C for high-frequency signal transmission.
Inner and Core Layers: Made of FR4 for mechanical support and cost reduction.
Dielectric Layers: Bonded with specialized adhesives like epoxy resin.
Advantages of Hybrid PCBs:
Performance Optimization: RO4003C ensures stable high-frequency signal transmission, while FR4 reduces overall costs.
Lightweight and Reliable: Thin overall thickness with maintained mechanical strength and electrical performance.
Cost Control: Provides high-performance characteristics at a fraction of the cost compared to an all-RO4003C board.
Versatile Design: Supports mixed high-frequency and low-frequency circuits, such as RF communication and power management modules.
Manufacturing Process
1. Material Selection
Select appropriate RO4003C and FR4 materials based on circuit requirements. RO4003C is typically used for high-frequency layers, while FR4 is used for power, ground, or low-frequency layers.
2. Lamination Process
The lamination process requires careful handling of thermal expansion differences between the two materials:
Thermal Expansion Matching: Control lamination temperature and pressure to ensure adhesion.
Adhesive Selection: Use specialized prepregs, such as RO4450F, for improved interface stability.
3. Drilling and Metallization
Drilling: Adjust drill speed and feed rate for RO4003C to prevent cracking or deformation.
Via Metallization: Use plating processes to create conductive paths between layers.
4. Circuit Pattern Transfer
Apply photolithography to transfer circuit patterns onto RO4003C and FR4 layers with high precision.
5. Surface Finishing
Common finishes include HASL, ENIG, or OSP for solderability and oxidation resistance.
High-frequency layers often use ENIG to minimize signal loss.
6. Quality Inspection
Conduct rigorous testing:
Electrical Performance Tests: Validate high-frequency signal transmission.
Mechanical Strength Tests: Ensure material durability.
Thermal Stability Tests: Confirm reliability under high temperatures.
Applications
High-Frequency Communication Equipment
Examples include 5G base station antennas, RF modules, microwave communication systems, and radar systems.
Automotive Electronics
Used in EV battery management systems (BMS), ADAS, and automotive radar systems.
Consumer Electronics
Ideal for devices like smartphones, tablets, and high-performance routers requiring mixed high-frequency and standard circuits.
Medical Devices
Applicable in precision diagnostic equipment, MRI systems, and high-frequency sensors.
The 4-layer RO4003C+FR4 hybrid PCB is a highly efficient and reliable solution that combines high-frequency performance with cost-effectiveness. By leveraging careful material selection and advanced manufacturing processes, it meets the dual demands of signal integrity and mechanical strength while significantly reducing production costs. Its versatile applications span communication, automotive, consumer electronics, and medical fields.
