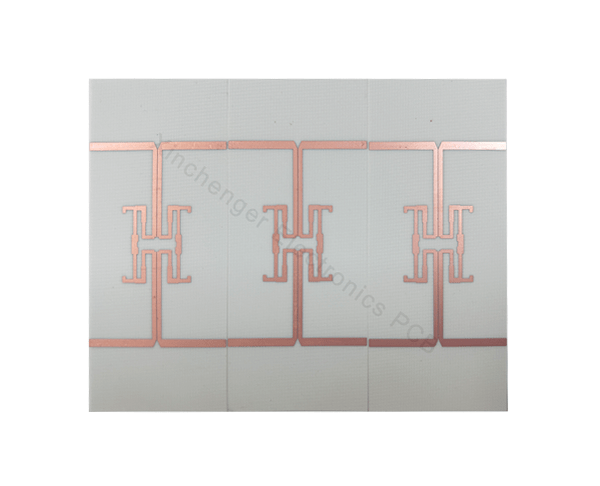

RO4003C High-Frequency PCB

Description

Ro4003C is a high-frequency printed circuit board (PCB) material produced by Rogers Corporation. It is primarily made from glass fiber and fluoropolymer materials (mainly PTFE), offering excellent electrical performance, mechanical properties, and thermal stability. It is especially suitable for high-frequency and high-speed circuit designs and applications. As a double-sided PCB, Ro4003C supports complex circuit designs while maintaining high signal integrity, low loss, and good electromagnetic compatibility. This material is widely used in communication, radar, satellite communications, electronic test equipment, and high-speed digital signal transmission fields.

1. Basic Properties of Ro4003C Material
Ro4003C has the following key characteristics:

Low Dielectric Constant (Dk): The dielectric constant of Ro4003C is typically around 3.38. In high-frequency design, a low dielectric constant helps reduce signal delay, increase transmission speed, and is particularly suitable for high-frequency applications.
Low Loss Factor (Df): Ro4003C has a low dissipation factor (Df), typically 0.0027. This means that there is minimal energy loss during signal transmission, reducing signal attenuation and heat loss.
High Thermal Stability: Ro4003C exhibits good thermal stability, with a maximum operating temperature of 140°C. It can maintain its electrical properties in high-temperature environments, making it suitable for harsh working conditions.
Good Mechanical Properties: Compared to standard FR4 materials, Ro4003C has better mechanical strength and toughness, capable of withstanding higher mechanical stresses. This is particularly advantageous for high-frequency and high-density circuit designs.
Stable Dielectric Performance: Over a wide frequency range, the dielectric constant and loss factor of Ro4003C remain stable, which is crucial for accurate signal transmission in high-frequency circuits.
2. Applications of Ro4003C Double-Sided PCB
Ro4003C double-sided high-frequency PCB is widely used in the following key fields:

Communication Equipment: Ro4003C is commonly used in wireless communication devices, especially for 4G/5G base stations, wireless communication modules, and other RF devices. These devices require stable signal transmission and high bandwidth, and Ro4003C’s low-loss properties make it an ideal material choice.
Satellite Communications: In satellite communication systems, especially for long-distance transmission of high-frequency signals, Ro4003C plays a significant role. It provides low signal attenuation and high signal fidelity, making it widely used in satellite antennas, receivers, and transmitters.
Radar Systems: In radar systems, due to the high-frequency nature of the signals, Ro4003C ensures excellent signal integrity and interference resistance, making it common in aerospace, military, and autonomous driving radar systems.
High-Speed Digital Circuits: Ro4003C is not only suitable for RF analog circuits but also for high-speed digital circuit designs. As data transmission speeds increase, signal quality and delay control become critical, and Ro4003C’s low-delay features make it a top choice for high-speed data transmission circuits.
Test and Measurement Equipment: Precision measurement equipment such as oscilloscopes and spectrum analyzers often use Ro4003C as the PCB material. These devices require the processing of high-speed, high-precision signals, and Ro4003C ensures stability and reliability during long-term operation.
3. Design and Manufacturing Advantages of Ro4003C
Lower Signal Delay: The low dielectric constant and low loss factor of Ro4003C mean that signals propagate with minimal interference, enhancing circuit performance, especially for high-speed signal transmission.
Support for Precision Circuit Design: Ro4003C allows for higher-density routing in high-frequency PCB designs. Designers can complete complex circuit layouts in smaller spaces. Its high reliability and mechanical strength ensure that the designed circuits maintain stability under external factors such as vibration and thermal deformation.
Good Electromagnetic Compatibility (EMC): Ro4003C offers excellent electromagnetic shielding, effectively reducing electromagnetic interference (EMI) and leakage, improving the overall system’s EMC, especially for RF and high-speed digital circuits.
Ease of Processing and Manufacturing: Although Ro4003C is a fluoropolymer-based material, it has good machinability and can be processed through conventional PCB manufacturing techniques, such as drilling, cutting, and surface treatment, with high stability and precision during the manufacturing process.
4. Environmental Adaptability and Durability of Ro4003C
Low Moisture Absorption: Ro4003C has low moisture absorption, ensuring stable electrical performance even in high-humidity environments, preventing performance degradation caused by moisture.
Strong Corrosion Resistance: Ro4003C is highly resistant to chemical corrosion, allowing it to maintain its stable performance in harsh environmental conditions, such as high temperatures, high humidity, and acidic or alkaline environments, thus extending the PCB’s lifespan.
5. Comparison of Ro4003C with Other High-Frequency PCB Materials
Compared to other common high-frequency PCB materials such as FR4, Ro3003, and RO4350B, Ro4003C offers the following advantages:

Lower Dielectric Constant: Ro4003C’s lower dielectric constant offers better signal transmission speed and smaller delay.
Lower Loss Factor: Ro4003C’s lower dissipation factor (Df) reduces signal attenuation, making it ideal for high-frequency circuits that require strict signal integrity.
Superior Stability: Ro4003C maintains stable electrical performance across a wide operating temperature range, while some other materials may experience performance degradation in high-frequency applications.
Ro4003C double-sided high-frequency PCB has become the material of choice in many high-frequency and high-reliability circuit designs due to its excellent electrical, mechanical, and durability properties. Whether for communication devices, satellite communications, radar systems, or high-speed digital circuits, Ro4003C ensures stable signal transmission and reliable circuit performance. With the continuous development of 5G technology, IoT, and autonomous driving, the demand for Ro4003C in the market is expected to keep growing.
