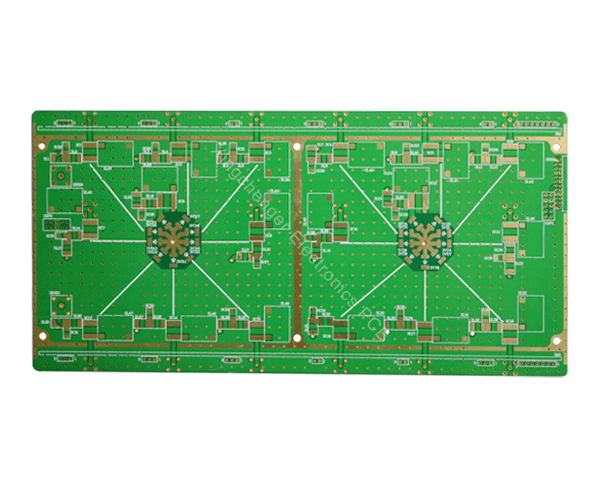

RO3010 High-Frequency PCB

Description

With the rapid development of modern high-frequency communication technologies and wireless applications, high-frequency PCBs have become a critical component in the electronics industry. Rogers Corporation’s RO3010 material, known for its ultra-low dielectric loss and high stability, is widely used in high-frequency fields such as RF communication, radar systems, and satellite transmissions. This article provides a comprehensive introduction to the features, structure, design considerations, manufacturing processes, and applications of RO3010 high-frequency PCBs.
1. Overview of RO3010
RO3010 is a high-performance, low-loss PTFE-based material designed for high-frequency and high-speed signal transmission. Its unique properties make it an excellent choice for high-frequency circuit design:
Dielectric Constant (Dk):
RO3010 has a dielectric constant of 10.2 (±0.3), ideal for applications requiring high capacitance or electrical performance.
Dissipation Factor (Df):
With a Df as low as 0.0023, it ensures minimal signal loss in high-frequency ranges.
Thermal Stability:
It exhibits an extremely low coefficient of thermal expansion (CTE), ensuring dimensional stability over a wide temperature range.
High Reliability:
Resistant to high temperatures and chemical corrosion, suitable for harsh environments.
Processability:
While offering superior performance, RO3010 requires specialized process control during manufacturing.
2. Structure of RO3010 High-Frequency PCB
The stack-up of RO3010 high-frequency PCBs varies based on application and signal requirements but typically includes the following:
Signal Layer:
Dedicated to high-frequency signal transmission, with impedance-controlled design for signal integrity.
Ground Plane (GND):
Provides shielding and return paths to reduce crosstalk and electromagnetic interference (EMI).
Power Plane:
Distributes stable power across the PCB.
Insulation Layer:
RO3010 is used as an insulating material to ensure low signal loss and high reliability.
Protective Layer:
The surface is treated with ENIG or other oxidation-resistant finishes.
3. Design Considerations for RO3010 High-Frequency PCB
Optimization for High Dielectric Constant:
RO3010 supports miniaturization by enabling shorter signal paths and higher signal densities.
Impedance Control:
Precise impedance matching is essential in high-frequency designs. Simulation tools like ADS or HFSS are recommended.
Thermal Management:
High-frequency circuits generate significant heat; thermal vias or copper heatsinks can improve heat dissipation.
Via Design:
Minimize the number of vias in high-speed signal paths to reduce parasitic effects.
Signal Shielding and Isolation:
High dielectric constants may lead to signal interference; proper ground plane shielding and partitioned layouts enhance isolation.
4. Manufacturing Processes for RO3010
RO3010 requires precise control of manufacturing processes due to its technical complexity:
Drilling and Plating:
Low mechanical strength requires low-speed drilling to avoid damage. Uniform copper plating ensures conductivity.
Lamination Process:
Accurate control of lamination temperature and pressure prevents delamination or voids.
Surface Finishing:
ENIG or silver finishes are recommended for high-frequency circuits to reduce surface roughness and improve signal efficiency.
Testing and Inspection:
TDR or VNA tools are used to validate impedance matching and signal integrity.
5. Applications of RO3010 High-Frequency PCB
5G Communication Equipment:
Supports higher bandwidth and lower latency, suitable for base station antennas and high-frequency filters.
Radar Systems:
Widely used in automotive millimeter-wave radar and aerospace radar circuits.
Satellite Communication:
Ensures high-frequency, low-loss signal transmission in satellite antennas and signal processing modules.
RF Modules:
Core components such as power amplifiers, mixers, and RF switches.
Medical Devices:
Used in high-frequency signal transmission for equipment like MRI.
RO3010 high-frequency PCBs, with their high dielectric constant, low dissipation factor, and excellent thermal stability, are a preferred material for high-frequency and high-speed circuit design. Their unique properties make them indispensable in fields such as 5G communication, radar, and satellite communication. However, their complex manufacturing processes and higher costs require professional technical support. By leveraging optimal design and strict manufacturing standards, RO3010 high-frequency PCBs can meet the demanding requirements of high-performance applications.
