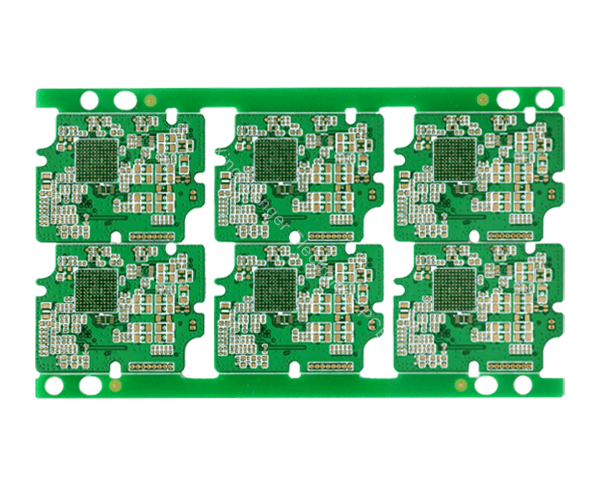

Ro3006 High-Frequency PCB

Description

The Ro3006 series from Rogers Corporation is a high-performance laminate material specifically designed for high-frequency applications. With exceptional dielectric properties and mechanical stability, it is an ideal choice for high-frequency microwave and RF applications. Featuring a high dielectric constant (Dk) and low dielectric loss (Df), Ro3006 delivers outstanding performance in applications such as millimeter-wave radar, satellite communication, antenna design, and other precision-demanding electronic scenarios.

1. Key Features of Ro3006
High Dielectric Constant
Ro3006 has a dielectric constant (Dk) of 6.15 ± 0.15 at 10 GHz. This high Dk value is particularly advantageous for compact circuit designs, enabling smaller device sizes to meet high-density circuit requirements.
Low Dielectric Loss
With a dielectric loss factor (Df) of only 0.002 at 10 GHz, Ro3006 supports efficient high-frequency signal transmission, ensuring signal integrity in high-frequency environments and enhancing overall system performance.
Excellent Thermal Stability
Ro3006 features a low coefficient of thermal expansion (CTE), especially in the z-axis, closely matching copper’s CTE. This minimizes thermal stress in multilayer designs, ensuring reliability in high-temperature environments.
Mechanical Stability
The material’s mechanical properties withstand harsh environmental conditions such as high humidity and vibration, making it suitable for aerospace and military applications.
Ease of Processing
Ro3006 is compatible with standard PCB manufacturing processes and offers excellent laminating and surface treatment adaptability, reducing manufacturing complexity and cost.
Eco-Friendly Properties
Ro3006 is RoHS-compliant, making it suitable for environmentally conscious markets.

2. Technical Specifications

3. Applications of Ro3006
Millimeter-Wave Radar
Ro3006 is widely used in automotive millimeter-wave radar (e.g., 77 GHz radar) due to its high dielectric constant and low loss characteristics. The high Dk enables compact antenna designs, reducing manufacturing costs while maintaining signal integrity.
Satellite Communication
Satellite systems require highly reliable performance under extreme conditions. Ro3006 excels in high-frequency signal transmission, ensuring data accuracy and resilience in satellite launch and operational environments.
High-Performance Antenna Design
High-frequency antennas (e.g., 5G antennas, microwave antennas) demand materials with high Dk and stable Df to achieve precise signal coverage. Ro3006 fulfills these requirements while supporting compact designs.
RF Filters
RF filters, critical components in communication systems, require extremely low loss and precise design. The electrical properties of Ro3006 optimize filter frequency response and operational efficiency.
Aerospace and Defense
In aerospace and military systems, reliability is paramount. Ro3006 performs exceptionally well in high-frequency signal transmission, navigation systems, and target detection devices, ensuring long-term stability.

4. Manufacturing and Processing Considerations
Lamination
Ro3006 supports hybrid lamination with other Rogers materials, such as Ro4003 and Ro4350B, for complex multilayer structures.
Drilling and Plating
Due to its high density and low water absorption, high-speed steel drills are recommended, with optimized drilling parameters to ensure hole wall integrity. Electroplating should focus on ensuring uniform fill.
Soldering
Ro3006 can withstand multiple reflow soldering processes, aligning with modern electronic manufacturing needs.
Storage and Cleaning
Materials should not be exposed to high humidity for prolonged periods. Store in a dry environment to maintain quality.

5. Advantages Compared to Traditional Materials
Compared to traditional FR-4 materials, Ro3006 offers significant advantages in high-frequency, high-temperature, and high-reliability applications:
Improved Signal Integrity
Low dielectric loss and high dielectric constant support efficient high-frequency signal transmission.
Size Optimization
The high Dk value helps reduce circuit board and antenna sizes, improving design flexibility.
Superior Thermal Performance
High decomposition temperature and low CTE enhance reliability in multilayer circuits.
Long-Term Stability
Even in harsh conditions, Ro3006 maintains stable electrical performance.

6. Future Trends for Ro3006
Support for Higher Frequencies
With the development of 5G and millimeter-wave communications, Ro3006 will play a greater role in applications above 80 GHz.
Integration with Advanced Packaging
In 2.5D/3D packaging and silicon photonics technologies, Ro3006 will support higher integration and signal processing capabilities.
Green Development
As environmental regulations tighten, Rogers Corporation may further optimize Ro3006 production processes to reduce its carbon footprint.
Broader Application Scenarios
From 6G communications to AI hardware and advanced sensing technologies, Ro3006 will remain a cornerstone for supporting future high-frequency electronic devices.
With its outstanding high-frequency performance, thermal stability, and mechanical reliability, Ro3006 has become a core material for microwave and RF applications. In the future, as millimeter-wave technology, 5G/6G communications, and aerospace fields continue to advance, Ro3006 will play an even greater role, providing reliable high-performance solutions for the industry.
