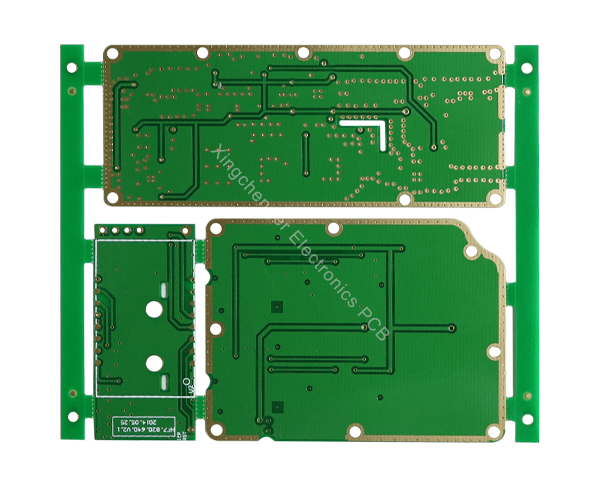

RF PCB

Description

RF PCBs (Radio Frequency Printed Circuit Boards) are specialized circuit boards designed for transmitting high-frequency and RF signals. They are widely used in 5G communication, satellite systems, radar, wireless devices, automotive electronics, and IoT (Internet of Things) applications. Compared to traditional PCBs, RF PCBs require stricter control over signal integrity, material properties, impedance matching, and manufacturing processes. This article provides a detailed overview of RF PCB performance and functionality, focusing on parameter ranges, core features, design considerations, and applications.
1. Parameter Ranges of RF PCB
 1.1 Frequency Range
Low-frequency range: 1 MHz – 300 MHz
RF range: 300 MHz – 3 GHz
Microwave range: 3 GHz – 30 GHz
Millimeter-wave range: 30 GHz – 300 GHz
RF PCBs typically operate in the RF and microwave ranges. For advanced applications such as 5G, they may reach frequencies as high as 28 GHz or even higher in the millimeter-wave spectrum.
 1.2 Material Parameters
The performance of RF PCBs depends heavily on the electrical properties of the materials used. Key material parameters include:
Dielectric constant (Dk): 2.2 – 3.5 (Low Dk materials promote faster signal propagation)
Dissipation factor (Df): 0.0009 – 0.005 (Low Df minimizes signal loss)
Coefficient of thermal expansion (CTE): ≤ 30 ppm/°C (for thermal stability)
Thermal conductivity: 0.3 – 1.2 W/m·K (for improved heat dissipation)
Copper thickness: 0.5 oz – 2 oz (for consistent low impedance)
Board thickness: 0.2 mm – 3.2 mm (depending on application needs)
 1.3 Impedance Control
Characteristic impedance range: 50Ω ± 5% (for standard single-ended signals)
Differential impedance range: 90Ω ± 10% (common for high-speed differential signals)
Transmission line types: Microstrip, stripline, coplanar waveguide
Precise impedance control is a core requirement in RF PCB design. Impedance mismatch can result in signal reflection and losses.
 1.4 Signal and Insertion Loss
Insertion loss: -0.3 dB/in – -1 dB/in (losses over high-frequency signal paths)
Signal propagation speed (Vp): 0.7c – 0.9c (close to the speed of light)
Low insertion loss is critical for maintaining RF PCB performance. Optimized designs and low Df materials are essential for reducing losses.
 1.5 Thermal Performance
Glass transition temperature (Tg): ≥ 170°C (suitable for high-temperature environments)
Coefficient of thermal expansion (CTE): x/y-axis: 10 – 15 ppm/°C; z-axis: 30 – 50 ppm/°C
Operating temperature range: -50°C – 150°C
Effective thermal performance ensures the stability of RF PCBs under high power or harsh environmental conditions.
2. Functional Features of RF PCB
 2.1 High-Frequency Signal Transmission
RF PCBs support stable transmission of high-frequency signals, minimizing signal attenuation, reflection, and interference. Materials like Rogers 4350B and Taconic TLY are commonly used due to their low Dk and low Df properties.
 2.2 Impedance Matching and Control
Accurate control of trace width, dielectric thickness, and material Dk ensures impedance matching, enabling signal integrity. Typical designs include:
Single-ended 50Ω impedance
Differential pair impedance control
Microstrip and stripline transmission lines
 2.3 Low Loss and High Signal Integrity
RF PCBs are designed for low insertion loss and minimal signal reflection, ensuring signal integrity in high-frequency applications. Maintaining signal fidelity is a critical requirement.
 2.4 Thermal Management and Reliability
High-frequency signal transmission generates significant heat. RF PCBs enhance heat dissipation and reliability through:
Thermal conductive materials (e.g., ceramic-filled PTFE)
Large ground planes
Thermal via designs
 2.5 EMI/EMC Compatibility
RF equipment is prone to electromagnetic interference (EMI). RF PCBs improve electromagnetic compatibility (EMC) through grounding, shielding designs, and signal isolation.
3. Key Design Considerations for RF PCB
 3.1 Material Selection
RF PCBs often use low-loss, low-Dk materials, such as:
Rogers 4350B/4003C
Taconic TLY/TTLY series
Arlon AD300
Teflon (PTFE)-based materials
 3.2 Trace Design
Trace width calculation: Precisely calculated using software like Altium Designer to ensure impedance matching.
Microstrip and stripline: Reduce electromagnetic radiation and signal loss.
Shortest path principle: Minimize trace length to reduce signal degradation.
 3.3 Layer Stackup
Proper layer stackup is essential for impedance control and reducing crosstalk. Common configurations include:
Four-layer microstrip designs
Multilayer stripline configurations
Coplanar waveguide structures
 3.4 Grounding and Shielding
Large ground planes (GND): Enhance signal integrity.
Via shielding: Use grounded vias to form effective shielding and suppress crosstalk.
Dedicated shielding areas: Apply metal shields to sensitive RF components.
4. Applications of RF PCB
 4.1 5G Communication Equipment
RF PCBs are widely used in 5G base stations, antenna modules, and RF front-end modules, enabling high-speed data transmission and low signal loss.
 4.2 Aerospace and Defense
Applications include satellite communications, navigation systems, and radar systems, requiring high reliability and low signal attenuation.
 4.3 Automotive Electronics
RF PCBs are critical in automotive radar systems and autonomous driving sensors.
 4.4 Wireless Communication Devices
Applications include Wi-Fi, Bluetooth modules, and RFID systems, ensuring stable wireless signal transmission.
 4.5 Medical Devices
Used in advanced medical equipment such as MRI machines and RF therapy devices.
 4.6 IoT Applications
IoT devices rely on RF PCBs for short-range, low-power wireless communication in LoRa and NB-IoT modules.
 4.5 Future Trends in RF PCB
With the rapid advancement of high-frequency technologies, RF PCBs continue to evolve. Key trends include:
Millimeter-wave and 6G technology: Operating frequencies exceeding 100 GHz.
High thermal conductivity materials: For managing higher power and heat.
Flexible and hybrid PCBs: Supporting compact and three-dimensional structures.
AI-assisted design tools: Leveraging AI and simulation software to optimize RF PCB designs.
RF PCBs enable high-frequency signal transmission, low loss, impedance matching, thermal management, and EMI compatibility, making them essential in communication, automotive, aerospace, and IoT industries. During design and manufacturing, strict control of materials, impedance, trace layout, and thermal performance is necessary to meet the demands of high-frequency devices. As 5G, 6G, and IoT technologies advance, RF PCBs are poised for broader applications and technological breakthroughs.
