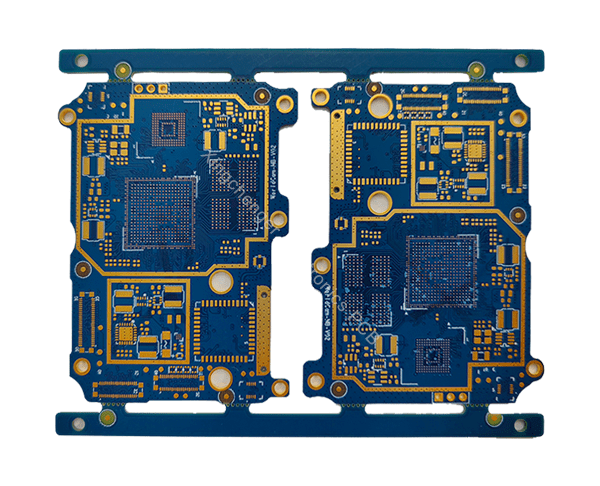

Multilayer High-frequency PCB

Description

Multilayer high-frequency PCBs (Printed Circuit Boards) are essential components designed for high-frequency, high-speed signal transmission environments. They are widely used in modern communication devices, automotive electronics, military equipment, medical devices, and computer systems. As electronic devices increasingly demand higher frequencies and faster data transfer rates, multilayer high-frequency PCBs have become indispensable. This article provides a comprehensive overview of their structure, materials, key design considerations, manufacturing processes, application scenarios, and future development trends.
1. Structure of Multilayer High-Frequency PCB
The basic structure of multilayer high-frequency PCBs consists of multiple signal layers, ground layers, and power layers. These layers are separated by insulating layers and stacked in a specific sequence. Signal layers are used for high-frequency signal transmission, ground layers serve for electromagnetic shielding, and power layers provide a stable current. Multilayer designs not only increase routing flexibility but also reduce signal interference, preserving signal integrity.
Different layer counts offer unique design characteristics. Generally, the more layers, the more complex the PCB’s functions. For instance, four- or six-layer boards suit simpler circuit needs, while eight or more layers can support more advanced applications. Each layer’s thickness and material must be finely controlled to ensure stable signal transmission across layers.
2. Materials for Multilayer High-Frequency PCB
High-frequency PCBs require materials with low dielectric constants, low loss factors, excellent thermal stability, and mechanical performance. Common substrate materials for high-frequency PCBs include:
PTFE (Polytetrafluoroethylene): This material has a low dielectric constant, minimal loss, and excellent thermal stability, making it popular for high-frequency applications.
FR-4: Although FR-4’s dielectric performance is inferior to PTFE, it is cost-effective and performs well in general high-frequency applications, suitable for scenarios that do not demand extremely high frequencies.
Ceramic-filled Materials: Ceramic materials have low loss and dielectric constants, ideal for certain high-frequency applications as a PTFE substitute, and provide better cost efficiency.
To optimize PCB performance, designs often combine different materials. For example, PTFE might be used for critical high-frequency layers, while other layers utilize more economical FR-4, balancing performance and cost.
3. Key Design Considerations for Multilayer High-Frequency PCB
When designing multilayer high-frequency PCBs, attention must be paid to signal integrity, impedance matching, heat dissipation, and electromagnetic compatibility:
Signal Integrity: High-frequency signals are prone to electromagnetic interference and crosstalk, so careful routing is needed to minimize these effects. Signal paths should be kept short and isolated from interference sources, with an appropriate grounding design.
Impedance Matching: To ensure stable signal transmission, impedance matching is essential to avoid losses due to signal reflection.
Thermal Management: Due to the higher power consumption of high-frequency PCBs, heat dissipation is crucial. Adding thermal layers or vias in the design helps keep the board within a safe temperature range.
Electromagnetic compatibility (EMC): High-frequency PCBs emit electromagnetic radiation during high-speed signal transmission, so electromagnetic compatibility design is necessary to prevent interference with other devices.
4. Manufacturing Process of Multilayer High-Frequency PCB
Manufacturing multilayer high-frequency PCBs is complex, involving several key steps:
Substrate Preparation: Cleaning the substrate surface to remove contaminants, followed by applying an anti-oxidation layer for durability.
Pattern Transfer: Transferring circuit patterns onto copper foil layers through exposure and development, and using etching to remove excess copper to create the desired circuitry.
Stacking and Lamination: Stacking multiple circuit layers and bonding them under high temperature and pressure to form an integrated multilayer PCB.
Drilling and Plating: Drilling holes in the board, followed by plating to create conductive channels connecting the layers.
Surface Treatment and Testing: Surface treatment improves oxidation resistance and solderability, and electrical testing ensures the PCB meets design standards.
5. Application Scenarios of Multilayer High-Frequency PCB
With the development of electronic technology, multilayer high-frequency PCBs are widely applied in the following fields:
Communication Equipment: 5G base stations, satellite communications, and wireless devices require high-frequency PCBs to transmit large amounts of data at high speed.
Automotive Electronics: High-frequency PCB ensure accurate data transmission in automotive radar, navigation, and autonomous driving systems.
Military Equipment: Used extensively in radar systems, missile guidance systems, and fighter jets, high-frequency PCBs ensure stable high-frequency signal transmission.
Medical Devices: In precision diagnostic and surgical equipment, high-frequency PCBs support high-speed processing and data transfer, enhancing equipment performance.
Computers and Servers: Multilayer high-frequency PCB are used in motherboards, storage devices, and data transmission equipment, supporting high-speed data processing and transfer.
6. Development Prospects for Multilayer High-Frequency PCBs
With the rise of 5G, IoT, and AI technologies, the demand for high-frequency PCBs will continue to grow, moving towards higher frequencies, smaller sizes, and lower loss. Emerging fields like autonomous driving, smart cities, and intelligent manufacturing will further expand high-frequency PCB applications. As manufacturing techniques and materials science advance, future high-frequency PCBs will see significant improvements in cost, performance, and durability, broadening their application landscape.
