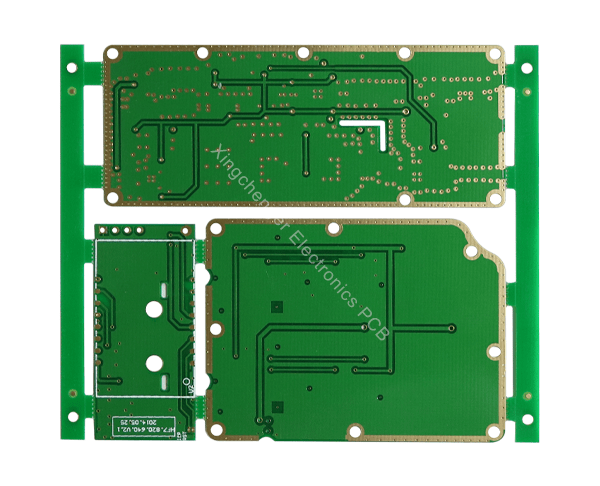

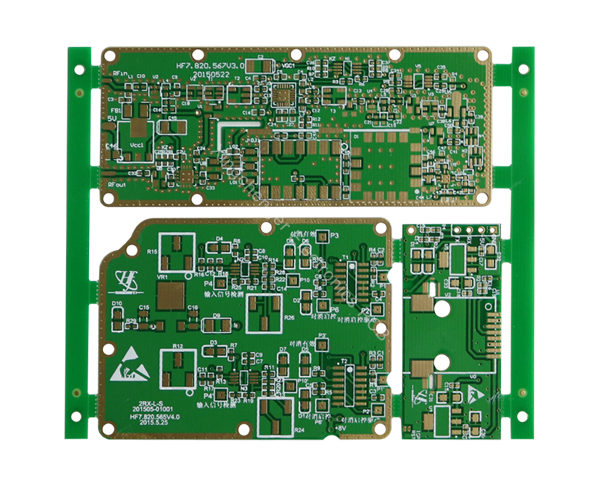

Multilayer F4B RF PCB

Description

Multilayer High-Frequency F4B RFPCB
With the rapid development of wireless communication technology, multilayer high-frequency RFPCB (Radio Frequency Printed Circuit Board) has become an essential carrier for high-frequency and high-speed signal processing. F4B, a widely used high-frequency PCB substrate, is favored for its excellent electrical performance and thermal stability, making it ideal for advanced applications such as 5G communication, radar, and aerospace. This article provides a comprehensive introduction to the features, structure, design considerations, manufacturing processes, and application scenarios of multilayer high-frequency F4B RFPCB.
1. Introduction to F4B Substrate
F4B is a high-frequency PCB material based on PTFE (Polytetrafluoroethylene) with the following characteristics:
Low Dielectric Constant (Dk): Typically between 2.2-2.65, suitable for high-speed signal transmission.
Low Loss Tangent (Df): Extremely low loss tangent (usually below 0.002) ensures signal integrity at high frequencies.
Excellent Thermal Stability: Features a low coefficient of thermal expansion (CTE), ideal for high-temperature environments.
Strong Chemical Resistance: Resistant to acid and alkali corrosion, suitable for complex working environments.
Superior Mechanical Properties: High strength and bending resistance, ideal for high-density multilayer designs.
2. Structure of Multilayer High-Frequency F4B RFPCB
A typical multilayer F4B RFPCB consists of:
Signal Layers: Used for high-frequency signal transmission, requiring precise impedance control.
Ground Planes: Provide shielding to reduce electromagnetic interference (EMI).
Power Planes: Distribute power and provide electrical isolation.
Insulation Layers: Use F4B material to ensure interlayer electrical isolation and dielectric support.
Protective Layers: Surface finishes such as ENIG (Electroless Nickel Immersion Gold) or OSP prevent oxidation.
3. Design Considerations
Dielectric Property Matching
Select F4B materials with suitable dielectric constants (Dk) to match signal frequencies and line widths.
Impedance Control
High-frequency designs require precise impedance control, typically modeled for microstrip or stripline structures.
Signal Integrity
Minimize signal path lengths to reduce losses and reflections.
Ensure the continuity of ground planes to maintain return paths.
Thermal Management
Add thermal vias or layers to dissipate heat generated by high-frequency circuits.
Small Via Design
Blind or buried vias and laser-drilled microvias minimize signal loss and enable finer routing.
High-Frequency Electromagnetic Compatibility (EMC)
Prevent crosstalk and radiation interference through shielding layers and signal partitioning.
4. Manufacturing Processes
Material Selection
Choose suitable F4B models (e.g., F4B-2, F4B-3) based on application requirements, as Dk and Df vary slightly among models.
Lamination Process
Multilayer F4B PCBs use thermal press lamination with strict temperature and pressure controls to prevent delamination or voids.
Drilling Process
Laser drilling ensures high-quality vias, critical for signal integrity in small-diameter holes.
Surface Finishing
ENIG or chemical silver is used for high-frequency circuits to ensure low loss and oxidation resistance.
Testing and Inspection
High-frequency impedance and signal integrity are tested using TDR (Time-Domain Reflectometer) or VNA (Vector Network Analyzer).
5. Application Scenarios
5G Communication
Used in base station antennas, high-frequency filters, and RF front-end modules.
Radar Systems
Ideal for automotive millimeter-wave radar, aerospace radar, and navigation systems.
High-Performance RF Modules
Widely applied in power amplifiers, mixers, and RF transceivers.
Satellite Communication
Ensures high-frequency, low-loss signal transmission in satellite systems.
Medical Electronics
Used in precision imaging devices (e.g., MRI) and RF therapy equipment.
Multilayer high-frequency F4B RFPCB stands out as a critical component in modern RF circuit design due to its exceptional electrical properties, thermal stability, and mechanical reliability. By adopting proper design strategies and precise manufacturing processes, the advantages of F4B materials can be fully leveraged, providing efficient and reliable solutions for high-frequency applications.
