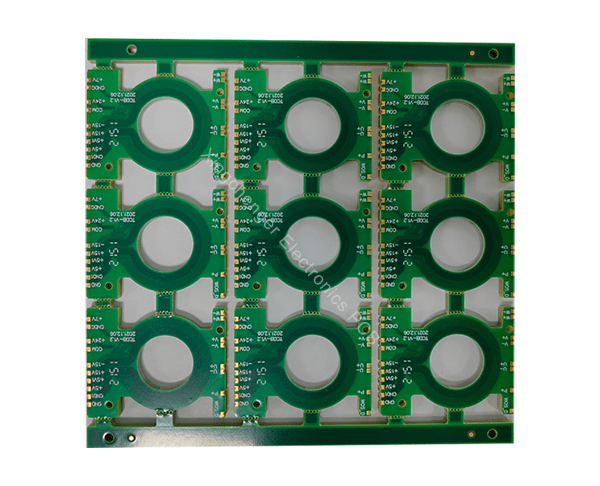

High-Frequency Antenna PCB

Description

High-Frequency Antenna PCBs are essential components in modern communication technologies. With the development of 5G communication, IoT, satellite communication, and radar technologies, the demand for high-frequency PCBs is increasing, along with stricter technical requirements. This article provides a detailed explanation of the key technologies and performance of high-frequency antenna PCBs, covering their structure, material characteristics, performance indicators, manufacturing processes, application areas, and future trends.
1. Basic Structure of High-Frequency Antenna PCBs
The basic structure of high-frequency antenna PCBs includes substrate materials, conductive layers, protective layers, and auxiliary structures:
Substrate Materials
The substrate is the core component of a high-frequency antenna PCB, and its performance directly affects the signal transmission quality under high-frequency conditions. Common substrate materials include:
Polytetrafluoroethylene (PTFE): Known for its low dielectric constant (Dk) and low dielectric loss (Df), PTFE is widely used in high-frequency applications.
Ceramic-Filled Materials: Adding ceramic powder to resin substrates improves dielectric performance and thermal stability.
High-Frequency Epoxy Resin: While less expensive, its dielectric performance is slightly inferior to PTFE materials.
Conductive Layers
The conductive layer is typically made of high-purity copper foil with a thickness ranging from 18μm to 70μm. The accuracy and uniformity of the conductive pattern are critical for stable signal transmission and resistance to interference.
Protective Layers
The surface of the high-frequency PCB is usually covered with protective materials, such as chemical gold plating or organic solder protection layers, to enhance corrosion resistance and solderability.
Auxiliary Structures
To meet the demands of complex circuit designs, high-frequency antenna PCBs may feature multi-layer structures, vias, and shielding layers.
2. Key Performance Characteristics of High-Frequency Antenna PCBs
High-frequency antenna PCBs need to meet the following critical performance requirements for effective high-frequency signal transmission:
Low Dielectric Constant (Dk) and Low Dielectric Loss (Df)
High-frequency signal transmission requires substrates with stable and low dielectric constants (typically ranging from 2.2 to 3.5) and extremely low dielectric loss (less than 0.002). These characteristics effectively reduce signal delay and energy loss.
Precise Impedance Control
High-frequency signals are highly sensitive to impedance variations, so PCBs must strictly control characteristic impedance to reduce signal reflection and attenuation. The accuracy of impedance control is typically required to be within ±5% of the target value.
Thermal Stability and Mechanical Strength
High-frequency equipment often operates in high-temperature or harsh environments, requiring PCBs with superior thermal stability. The substrate material must maintain dimensional stability over a wide temperature range while providing good mechanical strength to withstand processing and assembly demands.
Low Signal Loss
Signal loss in high-frequency environments arises from dielectric and conductor loss. To ensure signal integrity at high frequencies, high-quality conductive layers and optimized conductor designs are needed to minimize attenuation during transmission.
Electromagnetic Compatibility (EMC)
High-frequency PCBs must be designed to reduce electromagnetic interference (EMI) to ensure stable operation in multi-signal environments.
3. Manufacturing Processes of High-Frequency Antenna PCBs
The manufacturing process for high-frequency antenna PCBs is complex and technically demanding. Key steps include:
Material Selection
Suitable substrate materials are selected based on application requirements, and copper foil thickness and protective coatings are matched to the frequency range and operating conditions.
Pattern Etching
High-precision etching techniques are used to create conductive patterns, ensuring accuracy and uniformity. Special attention is given to tolerances in line width and spacing during etching.
Lamination Process
Multi-layer high-frequency PCBs undergo lamination to ensure electrical isolation and mechanical bonding between layers. Lamination temperature and pressure are carefully controlled to prevent material deformation or performance degradation.
Surface Treatment
Surface treatments such as gold plating, tin plating, or organic solder protection (OSP) enhance oxidation resistance and improve solderability.
Impedance Testing
During production, each PCB is tested using impedance analyzers to ensure the characteristic impedance is within the design range.
Final Inspection
Electrical performance testing, dimensional checks, and environmental resistance tests ensure the product meets design specifications.
4. Application Areas of High-Frequency Antenna PCBs
High-frequency antenna PCBs are widely used in multiple high-tech fields, including:
5G Communication
High-frequency PCBs are especially prominent in 5G base stations and user equipment, particularly in millimeter-wave bands (above 24 GHz) for RF front-end modules and antenna arrays.
Satellite Communication and Navigation
In systems such as GPS and BeiDou satellite navigation, high-frequency PCBs support high-precision and low-latency signal processing.
Radar Systems
High-frequency PCBs are used in automotive millimeter-wave radar and aviation radar to support high-speed signal transmission and processing.
IoT Devices
IoT applications rely on the stability and low power consumption of high-frequency PCBs in wireless sensors and communication modules.
Medical Electronics
In high-precision medical devices, such as MRI machines and RF treatment devices, high-frequency antenna PCBs are used for high-frequency signal transmission and processing.
5. Future Development Trends
As technology advances, the performance and manufacturing processes of high-frequency antenna PCBs will continue to improve. The main trends include:
Support for Higher Frequencies
With the rise of terahertz communication technology, high-frequency PCBs will need to support wider frequency ranges with lower losses.
Miniaturization and Integration
The integration of antennas and PCBs will drive the design of smaller, lighter devices.
Environmentally Friendly Materials
Future PCBs will increasingly use eco-friendly materials to reduce the carbon footprint of production processes.
Cost Optimization
Reducing manufacturing costs while maintaining high performance will be a key challenge for the industry.
High-frequency antenna PCBs will remain a critical technology for modern communication systems. By meeting stringent performance requirements and continuously improving manufacturing processes, these PCBs will play a pivotal role in enabling future technological advancements.
