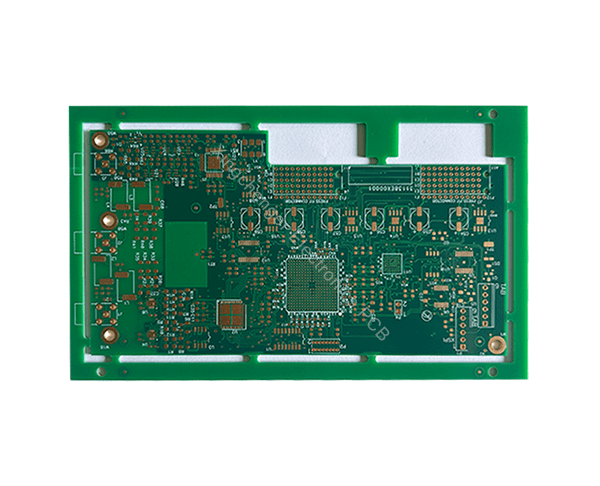

FR4 High-Speed PCB

Description

With the rapid development of electronic technology, high-speed signal transmission has become a critical requirement in modern electronics. In fields such as data communication, consumer electronics, and automotive electronics, PCB (Printed Circuit Board) design faces increasingly stringent demands. As the most commonly used PCB substrate, FR4 remains significant in high-speed circuits due to its excellent performance and cost-effectiveness. However, high-speed circuits impose rigorous requirements on signal integrity, electrical performance, and thermal management. This article provides a comprehensive analysis of FR4 high-speed PCBs, covering material properties, design optimization, manufacturing processes, and applications.
1. Basic Characteristics of FR4 Material
FR4 is a composite material made from glass fiber and epoxy resin. Its key characteristics include:
Dielectric Constant (Dk)
FR4’s Dk ranges from 4.2 to 4.8, supporting medium-frequency and low high-speed signal transmission.
Dissipation Factor (Df)
With a Df of 0.02~0.035, FR4 offers moderate signal loss but is less suitable for ultra-high-speed applications.
Mechanical Strength
FR4 provides excellent strength and adaptability to manufacturing processes, such as drilling and multilayer lamination.
Thermal Stability
The glass transition temperature (Tg) of FR4 typically ranges from 130°C to 180°C, with high-Tg versions for demanding thermal conditions.
Cost-Effectiveness
Compared to high-performance materials like Rogers or PTFE, FR4 is an economical choice for large-scale production.
2. Limitations of FR4 in High-Speed Applications
Despite its advantages, FR4 exhibits the following limitations in high-speed scenarios:
Frequency-Dependent Dielectric Constant
FR4’s Dk varies with frequency, causing signal propagation delays and integrity issues at high frequencies.
Higher Dielectric Loss
The relatively high Df leads to significant signal attenuation in GHz-range signals.
Poor Thermal Conductivity
FR4’s low thermal conductivity struggles to dissipate heat in high-power designs.
Electromagnetic Compatibility Issues
In high-speed applications, FR4’s weaker electromagnetic shielding capabilities can result in increased signal noise and crosstalk, affecting overall signal quality.
3. Design Optimization Strategies for FR4 High-Speed PCBs
To overcome the limitations of FR4 in high-speed signal transmission, designers can adopt the following optimization strategies to enhance performance:
Layer Stack-Up Design
Use multilayer PCB designs to minimize signal interference by placing ground planes adjacent to high-speed signal layers.
Add shielding layers around high-speed signals to improve electromagnetic compatibility (EMC).
Impedance Control
Precise impedance matching is critical for high-speed circuits. Adjusting trace width, dielectric thickness, and spacing helps achieve accurate impedance control.
Employ differential signal design to enhance noise immunity.
Use Modified FR4 Materials
High-Tg FR4 materials provide superior thermal stability, making them suitable for high-frequency applications.
Low-Df FR4 variants can reduce signal attenuation within certain frequency ranges.
Optimize Trace Layout
Shorten critical signal traces to avoid reflection and reduce signal loss.
Avoid sharp turns in the routing and ensure smooth signal paths.
Thermal Management
Add thermal vias and heatsinks near heat-generating components to improve heat dissipation.
Arrange high-power components carefully to prevent localized overheating.
Signal Integrity Simulation
Perform Signal Integrity (SI) and Electromagnetic Interference (EMI) simulations during the design phase to identify and resolve potential issues early.
4. Manufacturing Process Requirements for FR4 High-Speed PCBs
Manufacturing FR4 high-speed PCBs requires attention to the following key processes:
Precision Pattern Transfer
High-speed PCBs demand precise trace widths and spacing, requiring advanced photolithography techniques to ensure accuracy.
Multilayer Lamination
Proper alignment and uniformity in multilayer boards are essential for reliable signal transmission across layers.
Drilling Techniques
High-speed PCBs often require microvias and blind vias. High-precision laser drilling is used to minimize parasitic effects.
Surface Treatment
Surface finishes like ENIG (Electroless Nickel Immersion Gold) or immersion silver are used to reduce contact resistance and improve signal quality.
Impedance Control in Manufacturing
Consistent control of dielectric thickness, copper foil thickness, and etching parameters is crucial to achieve the designed impedance values.
5. Applications of FR4 High-Speed PCBs
Despite its limitations, FR4 remains widely used in the following high-speed applications due to its cost-effectiveness and processability:
Communication Equipment
High-speed backplanes and signal transmission modules in routers and switches.
Consumer Electronics
High-speed data interfaces and storage modules in smartphones and tablets.
Automotive Electronics
Applications in in-vehicle Ethernet, high-speed camera modules, and sensor data processing systems.
Industrial Automation
High-speed data acquisition modules and signal processing circuits in industrial control systems.
FR4 remains a critical material for high-speed PCB designs due to its excellent mechanical, electrical, and economic properties. By implementing optimized design practices, adopting modified materials, and utilizing advanced manufacturing techniques, FR4 high-speed PCBs can meet most medium- to high-speed signal transmission demands. However, for ultra-high-frequency and more demanding applications, combining FR4 with high-performance materials like Rogers or ceramic substrates can significantly improve overall performance. In the future, with advancements in material and process technologies, FR4’s capabilities are expected to improve, enabling it to meet even more complex and high-speed application requirements.
