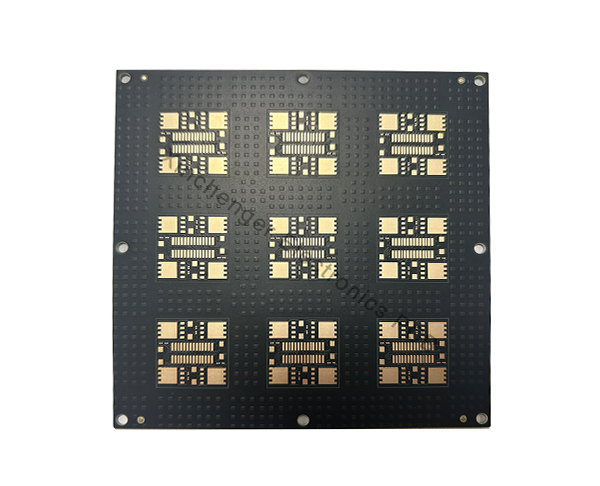

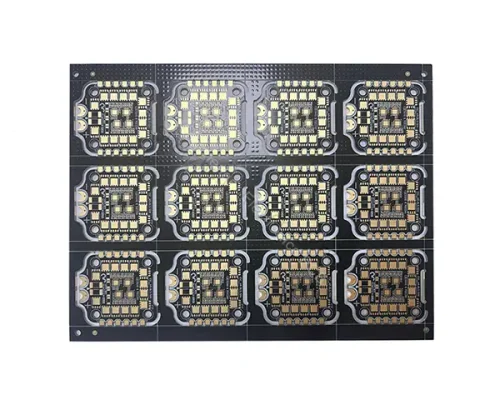

FR4 4-Layer HDI PCB

Description

Overview of FR4 Material
FR4 is a widely used substrate material in printed circuit board (PCB) manufacturing, primarily composed of glass fiber and epoxy resin. Its properties make it highly suitable for various applications in the electronics industry. FR4 materials are characterized by high-temperature resistance, excellent insulation properties, and mechanical strength, making them ideal for multi-layer PCB fabrication.

Structure and Function of 4-Layer HDI PCB
A 4-layer PCB consists of four layers, typically including two signal layers, one power layer, and one ground layer. The basic structure is as follows:

Top Layer: Usually used for mounting surface mount devices (SMD) or through-hole components (THD).
Inner Layer 1: Can serve as a signal layer, power layer, or ground layer, primarily responsible for signal transmission.
Inner Layer 2: Similarly can act as a signal, power, or ground layer, providing improved electrical performance and signal integrity.
Bottom Layer: Similar to the top layer, used for component placement or connections.
Functions of 4-Layer HDI PCB
Signal Integrity: With proper interlayer layout and design of power/ground layers, signal interference and crosstalk can be effectively reduced, enhancing signal integrity.
Power Management: Independent power and ground layers can minimize power noise, providing a stable working environment for the circuit.
Thermal Management: Multi-layer HDI PCB can effectively manage heat dissipation through well-designed thermal pathways and material choices.
Compact Design: The increased layer count allows for more compact designs, reducing space usage and accommodating the miniaturization demands of electronic products.
Application Areas
FR4 4-layer HDI PCB are used extensively across various industries and fields, including:

Consumer Electronics: Such as smartphones, tablets, and smart wearable devices, widely adopted due to miniaturization and high integration needs.
Communication Equipment: Such as routers, switches, and base stations, requiring stable signal transmission and strong interference resistance.
Automotive Electronics: Used in vehicle control systems, navigation systems, and in-car entertainment systems, demanding high reliability and high-temperature performance.
Medical Devices: Such as ultrasound machines and monitors, requiring high stability and long operational capabilities.
Industrial Control: Used in PLCs, variable frequency drives, and other control systems, providing high reliability and durability.
Production Requirements
1. Design Requirements
Layout Optimization: During circuit design, signal and power lines should be kept as short as possible, and ground layers should be arranged rationally to minimize interference.
Inter-layer Connections: Proper design of vias ensures effective connections for signals and power.
2. Material Requirements
FR4 Material Standards: Choose FR4 materials that comply with IPC-4101 standards, ensuring high-temperature resistance and mechanical strength.
Copper Thickness: Typically, a copper thickness of 1 oz (approximately 35 microns) is chosen, but this may vary based on specific applications.
3. Production Processes
Photolithography: High-precision photolithography equipment is required during PCB manufacturing to ensure the accuracy of circuit patterns.
Etching Process: Chemical etching techniques are used to ensure the clarity and integrity of copper traces.
Plating and Copper Deposition: Electroplating is performed inside vias to ensure good conductivity.
4. Quality Control
Electrical Testing: Electrical tests must be conducted during production to ensure all circuits are properly connected.
Visual Inspection: Automated Optical Inspection (AOI) and other methods are used to check for defects in the PCB’s appearance.
Environmental Testing: Reliability testing under high temperature and humidity conditions is performed to ensure stability under various conditions.
FR4 4-layer HDI PCB play a critical role in modern electronic products due to their superior performance and wide range of applications. Understanding their functions, applications, and production requirements is essential for designing and manufacturing high-quality HDI PCB.
