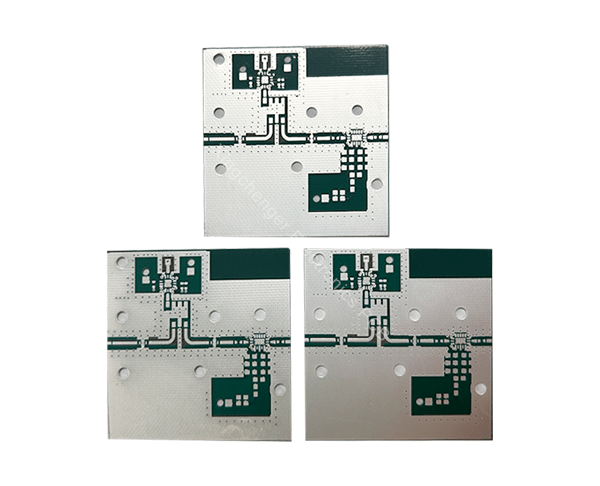

F4BM255 High-frequency PCB

Description

F4B255 is a widely used copper-clad laminate material in high-frequency circuit applications, known for its low dielectric constant, low loss factor, and excellent thermal stability. Its 0.245mm thickness design makes it ideal for compact and high-precision circuits, such as microwave communications, RF modules, antenna designs, and high-speed digital circuits.
1. Material Properties
Dielectric Constant (Dk): Typically around 2.55, ensuring minimal signal attenuation and excellent high-frequency signal transmission.
Loss Tangent (Df): As low as 0.0013, meaning the material offers extremely low signal loss in high-frequency applications.
Coefficient of Thermal Expansion (CTE): Low CTE along the z-axis ensures mechanical stability during thermal cycling, especially in multilayer PCB designs.
Thermal Conductivity: Exceptional thermal conductivity enhances heat dissipation and reliability.
Surface Roughness: A smooth surface ensures better adhesion of the copper layer while minimizing high-frequency losses.
2. Manufacturing Process
Substrate Preparation: The F4B255 substrate uses high-quality PTFE (polytetrafluoroethylene) mixed with fiberglass material, ensuring both mechanical strength and high-frequency performance.
Copper Cladding: Electrolytic copper or rolled copper, typically 18µm to 35µm thick, customizable per client requirements.
Lamination: The board undergoes high-temperature, high-pressure lamination to ensure mechanical and electrical stability.
Surface Treatment: Common treatments include chemical nickel-gold plating or immersion tin to improve solderability and oxidation resistance.
3. Application Fields
Telecommunication Industry: Used in base station antennas, microwave transmission equipment, and filters.
Aerospace: Suitable for radar systems, high-frequency sensors, etc.
Automotive Electronics: Applied in millimeter-wave radar and in-vehicle communication modules.
Consumer Electronics: Compatible with high-speed wireless charging devices and 5G equipment’s high-frequency circuits.
Medical Equipment: Utilized in MRI, CT scanners, and other precision signal processing devices.
4. Design Advantages
High-Frequency Performance: F4B255 is specifically designed for high-frequency applications, ensuring stable signal transmission.
Precision Manufacturing: The ultra-thin 0.245mm design meets the requirements of high-density PCB designs, suitable for smaller spaces and lighter weights.
Thermal Management: Excellent thermal conductivity characteristics extend product lifespan.
Reliability: Maintains mechanical stability in harsh environments.
5. Usage Considerations
Processing Temperature Control: PTFE materials are prone to thermal deformation during processing, so lamination and drilling temperatures must be strictly controlled.
Soldering: Low-temperature soldering processes are recommended to avoid overheating the material.
Storage Conditions: Maintain a dry environment and avoid extreme temperatures and humidity.
Design Tolerance: When designing high-frequency circuits, attention must be paid to the width and spacing of signal lines to optimize impedance matching.
The F4B255 0.245mm PCB stands out due to its excellent high-frequency performance, thermal stability, and compact design, making it the material of choice in many cutting-edge technological fields. It strikes a fine balance between signal integrity, heat management, and reliability, driving innovation in modern electronic technologies.
