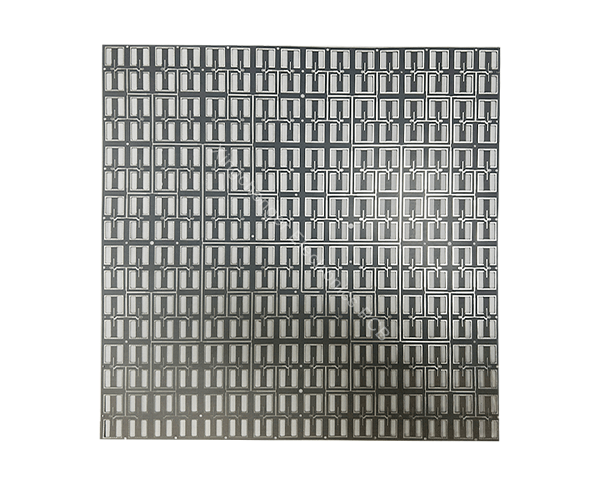

F4BM220 Antenna PCB

Description

1. Material Introduction
F4BM220 is a PTFE (Polytetrafluoroethylene)-based high-frequency laminate specifically designed for antenna PCBs. Compared to conventional FR-4, F4BM220 offers exceptional electrical performance, thermal stability, and low loss, making it ideal for RF and microwave antenna applications in modern communication systems.
The main features of F4BM220 include:
Low Dielectric Constant (Dk): 2.2 ± 0.02, with excellent stability across frequency ranges.
Low Loss Tangent (Df): 0.0009-0.001 (at 10GHz).
Extremely Low Moisture Absorption: Near 0%, ensuring performance in humid environments.
High Thermal Stability: Excellent CTE compatibility with copper, reducing thermal stresses.
Good Machinability: While PTFE is soft, F4BM220 maintains precision during fabrication.
2. Electrical Properties of F4BM220
F4BM220’s low dielectric constant minimizes signal delay and distortion in high-frequency circuits, while its low loss ensures high signal fidelity—crucial for antenna designs. Even in millimeter-wave frequencies (30GHz+), F4BM220 performs exceptionally well, meeting the demands of 5G and radar systems.
Key electrical parameters include:
Dielectric Constant (Dk): 2.20 ± 0.02 (1GHz-10GHz).
Dissipation Factor (Df): 0.0009 (at 10GHz).
Breakdown Voltage: > 50kV/mm.
Thermal Conductivity: 0.25W/m·K.
Surface Resistivity: > 10^8 MΩ.
3. F4BM220 Antenna PCB Manufacturing Process
The manufacturing process for F4BM220-based antenna PCBs involves:
Material Preparation: Cutting and cleaning F4BM220 substrates.
Drilling: Laser or mechanical drilling for feed holes and vias.
Hole Treatment: Conditioning PTFE holes for effective metallization.
Copper Deposition: Applying a uniform copper layer through electroless plating and electroplating.
Pattern Transfer: Transferring antenna patterns onto the copper layer using photolithography.
Etching: Removing excess copper to form the final antenna circuit.
Surface Treatment: Applying surface finishes such as ENIG, electrolytic gold, or lead-free HASL based on application requirements.
Testing and Inspection: Conducting electrical and visual tests to ensure compliance with design specifications.
4. Advantages of F4BM220 Antenna PCB
High-Frequency Performance: The low Dk and Df ensure exceptional high-frequency behavior.
Stable Signal Transmission: F4BM220 provides low insertion loss and minimal signal attenuation.
Dimensional Stability: Its low thermal expansion coefficient ensures stability during thermal cycling.
Environmental Durability: The near-zero moisture absorption maintains performance in harsh conditions.
Ease of Processing: Compared to other PTFE laminates, F4BM220 offers better machinability and processing accuracy.
5. Applications
F4BM220 antenna PCBs are widely used in:
5G Communication: High-frequency microstrip antennas and base station antennas.
Satellite Communications: High-gain satellite receiving antennas and transmission modules.
Radar Systems: Millimeter-wave radar antennas and phased array antennas.
Automotive Electronics: ADAS systems and automotive radar antennas.
Aerospace and Defense: Navigation systems and satellite antennas.
Medical Devices: High-frequency imaging antennas and wireless transmission modules.
With exceptional high-frequency performance, low loss, and mechanical stability, F4BM220 antenna PCBs are a preferred material for advanced antenna designs. Particularly in 5G, radar, and satellite communication applications, F4BM220 provides high reliability and manufacturability, ensuring its pivotal role in future high-frequency circuit technology.
