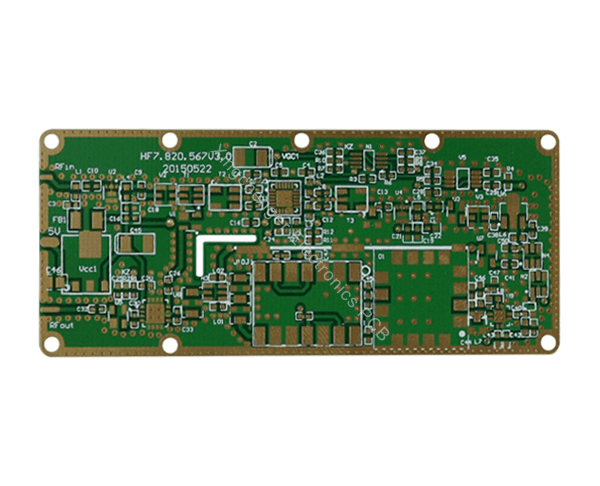

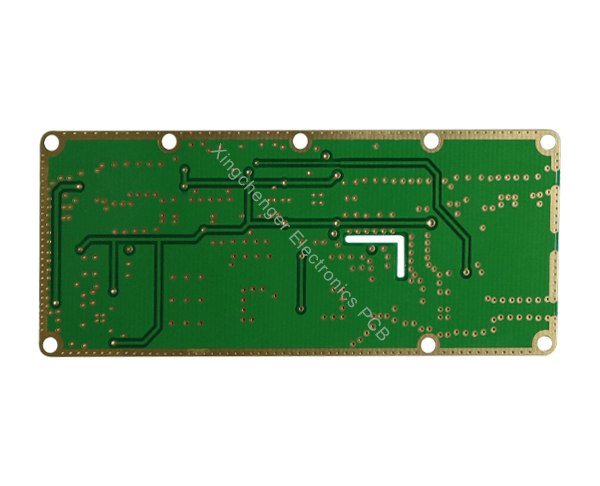

F4B Multilayer PCB

Description

1. Overview of F4B Multilayer PCB
F4B multilayer PCB (Printed Circuit Board) is a high-performance multilayer circuit board widely used in communication, computing, industrial control, medical devices, consumer electronics, and many other fields. F4B material is a composite material reinforced with glass fiber, usually made of epoxy resin as the base material and processed through special techniques. Due to its superior electrical properties, thermal stability, and processability, F4B material has become one of the preferred materials for high-frequency, multilayer circuit board manufacturing.
2. Properties of F4B Material
F4B is an advanced high-frequency PCB material with the following main characteristics:
Low Loss: F4B material has a low dielectric constant (Dk) and low loss factor (Df), which effectively reduces the energy loss of electrical signals during transmission, ensuring high-quality signal transmission, making it especially suitable for high-frequency circuit applications.
Good Thermal Stability: F4B material has high thermal stability, allowing it to operate in high-temperature environments while maintaining the reliability of the circuit board. Its thermal expansion coefficient (CTE) is similar to that of copper, which helps ensure the stability of vias and interlayer connections in multilayer PCBs.
Excellent Mechanical Properties: F4B material shows excellent mechanical strength and stiffness, even in small, high-density designs, maintaining good performance.
Good Processability: F4B material can be processed using conventional PCB manufacturing techniques such as drilling and etching, making it highly adaptable to various processing requirements.
Low Moisture Absorption: F4B material has low moisture absorption, ensuring good stability and electrical performance in humid environments.
3. Structure Design of F4B Multilayer PCB
The structure of an F4B multilayer PCB typically includes multiple electrical and interconnecting layers. The number of layers can range from 4 to 10 or more. The design generally includes copper foils for inner and outer layers to ensure good signal transmission.
Inner and Outer Layers: The inner layers are typically covered with F4B material, while outer layers may use metalized films or resin films for enhanced thermal resistance and oxidation resistance.
Layer-to-Layer Connections: In Ms, layer-to-layer connections are achieved through plated through holes (PTH) or microvias. These vias connect different electrical layers to form a complete circuit path.
Copper Foil Thickness: The copper foil thickness in F4B multilayer PCBs varies according to specific design requirements, typically ranging from 18μm to 105μm.
4. Applications of F4B Multilayer PCB
F4B multilayer PCBs are widely used in various industries due to their excellent performance, including:
Communication Industry: F4B multilayer PCBs are extensively used in 5G communication base stations, RF communication devices, satellite communication, optical communication, and other high-frequency applications. The low loss and high stability of F4B material ensure high-quality signal transmission, meeting the demands of high-speed data transmission.
Consumer Electronics: F4B multilayer PCBs play a crucial role in consumer electronics such as smartphones, tablets, TVs, and audio systems. Their compact size, high integration, and excellent performance make them ideal for modern electronic products.
Automotive Electronics: F4B multilayer PCBs are also widely used in automotive electronics systems such as navigation systems, in-vehicle entertainment systems, autonomous driving technologies, and car networking. Their high-temperature stability and shock resistance ensure the stable operation of automotive electronic systems.
Medical Devices: F4B multilayer PCBs are widely used in medical devices, including pacemakers, ultrasound diagnostic equipment, CT scanners, etc. Their high precision and reliability ensure the safety and functionality of medical equipment.
Industrial Control: In industrial control, F4B multilayer PCBs are applied in automation equipment, control systems, robots, PLCs (Programmable Logic Controllers), and more. Their high performance and stability ensure long-term reliable operation of industrial equipment.
5. Advantages and Challenges of F4B Multilayer PCB
Advantages:
High Performance: F4B material has excellent electrical properties, enabling stable operation in high-frequency environments, reducing signal loss, and adapting to higher operating frequencies.
Excellent High-Temperature Resistance: F4B multilayer PCBs can operate in a wide temperature range, making them suitable for extreme working environments such as high temperatures, high humidity, and corrosive conditions.
Good Processability: F4B material is adaptable to conventional PCB processing techniques, reducing manufacturing costs and process difficulty.
Challenges:
Higher Cost: Compared to standard FR4 materials, F4B material is more expensive, so it is not commonly used in low-cost products.
Complex Design Requirements: Designing and manufacturing F4B multilayer PCBs requires precise techniques and equipment, considering factors such as layer count, signal transmission paths, thermal management, etc.
F4B multilayer PCBs, with their superior electrical performance, thermal stability, and mechanical properties, are widely used in high-frequency circuits and complex circuit designs. Although their cost is relatively high, the high performance and stability they offer make them a key component in industries such as communications, consumer electronics, automotive electronics, and medical devices. As technology continues to advance, the application prospects for F4B materials will become even broader.
