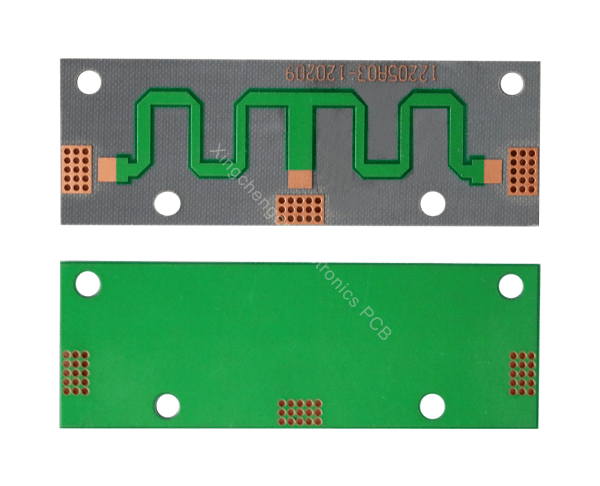

F4B High Frequency PCB

Description

F4B high-frequency PCB is a composite material based on Polytetrafluoroethylene (PTFE), known for its exceptional electrical and mechanical properties in high-frequency circuit design. This material is made by closely combining glass cloth, semi-cured sheets, and PTFE resin through precise ratio and rigorous craftsmanship, offering excellent electrical and mechanical properties, and is widely favored in the fields of radio frequency and microwave circuits.
Characteristics of F4B High-Frequency PCB
High Temperature Resistance: F4B high-frequency PCB can operate normally in extreme environments, with a working temperature range of -200°C to over 200°C. This characteristic allows it to remain stable in high-temperature environments such as aerospace and rockets.
Low Dielectric Constant and Dielectric Loss: The dielectric constant of F4B high-frequency PCB is less than 2.65, and the dielectric loss is also very low. This means it can effectively reduce signal distortion and energy loss during high-frequency transmission and high-speed operations, ensuring the stability and reliability of the circuit.
Superior Mechanical Properties: Due to the combination of multi-layer structures and various special materials, F4B high-frequency PCB has extremely high strength and rigidity, capable of withstanding various vibrations and impacts. In addition, it has good anti-folding and impact resistance capabilities, ensuring the stable operation of equipment under complex working conditions.
Good Flame Retardancy: The material of F4B high-frequency PCB itself has flame-retardant properties, which can effectively prevent fire accidents and protect equipment and personal safety. This is particularly important in specific environments such as military or aerospace fields.
Manufacturing Process of F4B High-Frequency PCB
The manufacturing process of F4B high-frequency PCB is an important part of its characteristics. F4B high-frequency PCB is made using a special hybrid process that allows for rapid and precise manufacturing of circuit boards in large-scale production, ensuring excellent consistency and accuracy. The manufacturing process requires strict environmental control, including precise control of temperature and humidity, to ensure the quality and performance of the circuit boards. In addition, its unique manufacturing process can reduce internal stress during the manufacturing process, improving the reliability and stability of the final product.
Applications of F4B High-Frequency PCB
Due to its excellent characteristics, F4B high-frequency PCB is widely used in various fields. It is mainly used in electronic equipment, especially equipment that frequently processes and transmits high-frequency signals, such as radar systems and satellite communication equipment. Secondly, due to its high-temperature resistance, F4B high-frequency PCB is also suitable for use in high-temperature environments, such as aerospace, military, and medical equipment, where it has a wide range of applications. In addition, F4B high-frequency PCB is also widely used in top professional music equipment, automotive electronic equipment, and other fields, providing extremely high durability and reliability.
Environmental Advantages of F4B High-frequency PCB
F4B high-frequency PCB is also a green and environmentally friendly material, with a production process that generates less harmful substances, greatly reducing environmental pollution. Moreover, F4B high-frequency PCB materials themselves are recyclable, playing an important role in environmental protection. In addition, products made from F4B high-frequency PCB have a long service life, reducing the consumption of resources from frequent equipment replacement, which is very important for our sustainable development.
With its excellent electrical performance, superior mechanical performance, and good flame-retardant properties, F4B high-frequency PCB has become the ideal choice for high-performance electronic devices. It not only meets the needs of high-performance applications but also provides environmentally friendly and economical solutions.
