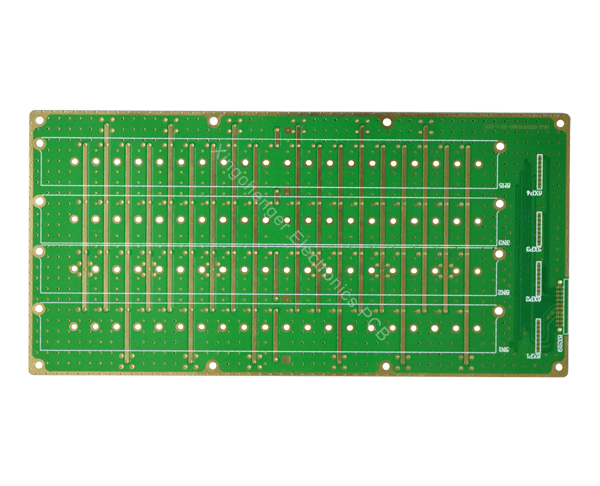

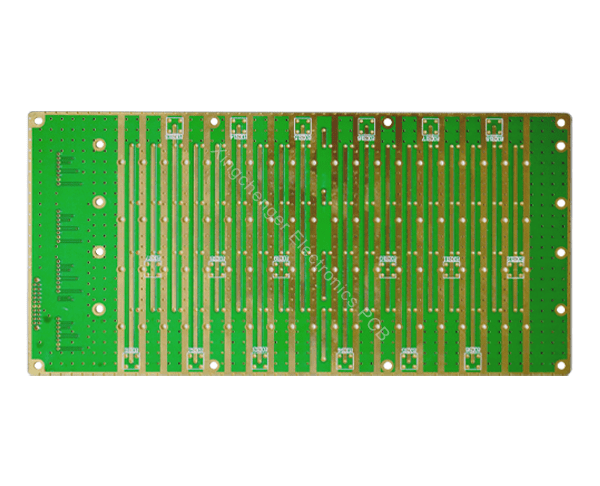

4-layer Rogers PCB

Description

Detailed Introduction to 4-Layer Rogers PCB
With the advancement of modern electronic technology, the demand for high-frequency and high-speed signal transmission continues to grow. Rogers PCBs, known for their excellent electrical performance and stability, are widely used in high-frequency communication, radar, and RF modules. This article provides a comprehensive introduction to the characteristics, structure, design considerations, manufacturing processes, and applications of 4-layer Rogers PCBs.
1. Introduction to Rogers PCB
Rogers Corporation is a leading manufacturer of high-performance circuit materials. Rogers PCB substrates are well-known for their low dielectric constant (Dk), low loss tangent (Df), and high stability. Compared to traditional FR-4 materials, Rogers materials are better suited for high-frequency and high-speed signal transmission, especially in RF and microwave applications.
Common Rogers materials include:
RO4000 Series (e.g., RO4350B, RO4835): Suitable for high-frequency signals and easy to process.
RO3000 Series (e.g., RO3003, RO3035): Extremely low loss, ideal for high-precision RF designs.
RT/duroid Series: Designed for the most demanding high-frequency and microwave applications.
2. Structure of 4-Layer Rogers PCB
A 4-layer Rogers PCB is a multilayer PCB composed of four conductive layers and several insulating layers. Its typical stack-up structure includes:
Top Layer
The primary conductive layer for high-frequency signal transmission, typically treated with anti-oxidation finishes such as ENIG or OSP.
Inner Signal Layer
Primarily used for internal high-speed signal routing and complex circuit layouts.
Power/Ground Plane
Provides power distribution and signal shielding to ensure signal integrity.
Bottom Layer
Used for signal transmission or as a ground reference.
3. Key Design Considerations
Dielectric Property Matching
Choose suitable Rogers materials based on the design frequency. Low Dk materials (e.g., RO4350B with a Dk of 3.48) are recommended for high-frequency designs.
Impedance Control
Impedance matching is critical for signal integrity in high-frequency circuits. Use modeling tools to calculate the width and spacing of microstrip or stripline traces.
Via Design
Minimize the number of vias in high-speed signal paths to reduce signal loss and reflection. Blind and buried vias are better suited for high-density designs.
Ground Plane Integrity
Ensure continuous ground planes to avoid segmentation or slots, which can disrupt return current paths.
Thermal Management
High-frequency circuits generate significant heat; design thermal vias or copper areas to improve heat dissipation.
High-Frequency Signal Shielding
High-frequency signals are prone to interference; use shielding layers or partitioned layouts to minimize crosstalk.
4. Manufacturing Processes
Material Selection
Select Rogers materials based on application requirements. For example, RO4350B is cost-effective for RF designs, while RO3003 is suitable for ultra-high-frequency applications.
Lamination Process
Rogers materials can be laminated with FR-4, but strict control of temperature and pressure is required to prevent delamination or voids.
Drilling Process
Both laser drilling and mechanical drilling are viable options, but attention must be paid to hole wall quality to avoid conductivity defects.
Surface Finishing
High-frequency circuits typically use ENIG or silver finishes to ensure low loss and oxidation resistance.
Testing and Inspection
Use Time-Domain Reflectometry (TDR) or Vector Network Analyzers (VNA) to test impedance and signal integrity.
5. Application Scenarios
5G Communication
Suitable for base station antennas, filters, and RF front-end modules, supporting high bandwidth and low latency.
Radar Systems
Widely used in automotive millimeter-wave radar, navigation systems, and aerospace radar equipment.
RF Modules
Core components such as power amplifiers, RF switches, and mixers.
High-Frequency Sensors
Used in high-precision sensors for medical devices and industrial detection.
Aerospace
Meets the high-reliability and high-frequency performance requirements of communication and navigation systems.
The 4-layer Rogers PCB, with its excellent electrical performance and stability, plays a vital role in high-frequency and high-speed circuit design. By selecting appropriate materials and optimizing designs, efficient and reliable signal transmission can be achieved to meet the demands of advanced applications such as 5G communication and radar systems. Adhering to strict manufacturing standards ensures the performance and reliability of the PCB.
