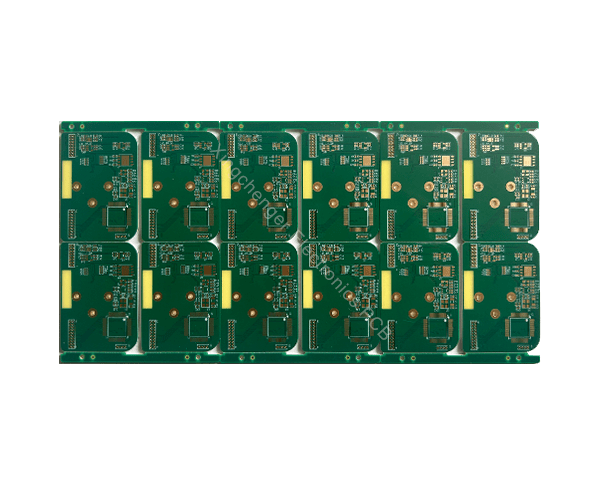

Rogers 3003 + FR4 High-Frequency PCB: Performance, Application Areas, and Production Requirements
Introduction to Materials
In high-frequency circuit design, material selection is critical. Rogers 3003 is a high-frequency substrate commonly used in microwave and RF applications. It is a ceramic-filled PTFE-based material with extremely low dielectric constant and loss factor, making it ideal for high-frequency circuits. FR4, on the other hand, is a standard PCB substrate with good mechanical strength and thermal resistance. Combining Rogers 3003 with FR4 allows designers to balance performance and cost in high-frequency circuit design, achieving optimal results.
Structure and Performance of Rogers 3003 + FR4 PCBs
1. Comparison of Material Properties
Rogers 3003:
Dielectric Constant (Dk): 2.92 (at 10 GHz).
Dielectric Loss Factor (Df): 0.0013 (at 10 GHz), which means extremely low signal loss.
Coefficient of Thermal Expansion (CTE): Low, suitable for environments with large temperature variations.
Excellent Chemical Stability: PTFE material is chemically stable and can withstand harsh environments.
FR4:
Dielectric Constant: Approximately 4.3, suitable for low to mid-frequency circuits.
Good mechanical performance, suitable for structural support in multilayer PCBs.
Lower cost, widely used in commercial PCB designs.
2. Combination of Rogers 3003 and FR4
In a Rogers 3003 + FR4 PCB, Rogers 3003 is typically used for the high-frequency layers, while FR4 is used for lower-frequency signal layers or as a support layer. This combination allows for high-frequency circuit performance while significantly reducing costs. FR4 also provides excellent mechanical strength, contributing to the overall structural stability of the PCB.
High-Frequency Layers: Using Rogers 3003 reduces signal loss during high-frequency transmission, minimizing signal attenuation and improving signal integrity.
Support Layers: FR4 is used for low-frequency layers and support, reducing overall PCB cost while providing necessary mechanical support and thermal management.
3. Application Areas
Due to the superior high-frequency performance and cost control of Rogers 3003 + FR4 PCBs, they are widely used in the following high-end application areas:
1. Telecommunications
5G Base Stations: High-frequency 5G systems require low signal loss and high signal integrity, making Rogers 3003 ideal for key components like antennas and power amplifiers.
2. Radar Systems
Automotive Radar: Modern vehicles increasingly rely on high-frequency radar systems for advanced driver assistance systems (ADAS) and collision avoidance warning functions. Rogers 3003 + FR4 PCBs are frequently used in these radar modules.
Military Radar: Military radar systems demand extremely high levels of signal stability and accuracy. The superior high-frequency performance of Rogers materials makes them one of the preferred materials in these applications.
RF and Microwave Devices
Wireless Devices: Devices such as Wi-Fi routers, wireless LAN (WLAN) equipment, and radio frequency identification (RFID) systems require high-performance high-frequency PCBs to ensure stable signal transmission and reception.
Millimeter-Wave Devices: Millimeter-wave technology is applied in several cutting-edge fields, including automotive, communication, and security. The combination of Rogers 3003 + FR4 meets the high-frequency circuit demands of these applications.
Medical Devices
Imaging Devices: Medical imaging equipment such as MRI and CT scanners require high-precision RF and microwave signal processing systems. The low-loss characteristics of Rogers 3003 + FR4 PCBs ensure high-quality transmission of imaging signals.
Production Requirements
1. Material Preparation
When producing Rogers 3003 + FR4 PCBs, special attention must be paid to material compatibility and the manufacturing process:
Rogers 3003: Since it is primarily composed of PTFE, it poses challenges to traditional PCB processing techniques. Specialized drilling and plating technologies are required to avoid damage to the material during processing.
FR4: While FR4 is relatively easy to process, the challenge in high-frequency applications lies in combining it with Rogers 3003 without compromising signal performance, making this a key aspect of production.
Lamination Process
The lamination process for Rogers 3003 and FR4 requires precise control of temperature and pressure to avoid delamination or degradation of material performance. PTFE materials, like Rogers 3003, have a high thermal expansion coefficient and different thermal treatment requirements. During multilayer lamination, it is essential to strictly manage the expansion and contraction effects to ensure the integrity and performance of the PCB.
Drilling and Plating
Rogers 3003 is relatively soft and can be easily damaged during drilling, so precision drilling equipment must be used, with careful control of drill speed and pressure. To ensure the conductivity of the hole walls, specialized chemical copper deposition techniques are often employed to maintain the electrical connectivity within the holes of high-frequency circuits.
Signal Integrity Testing
After production, the PCB must undergo a series of signal integrity tests, including high-frequency signal transmission tests and dielectric loss tests, to ensure that the electrical performance of the PCB meets design specifications for real-world applications.
Environmental Stability Testing
Rogers 3003 + FR4 PCBs are widely used in high-frequency and high-temperature environments. Therefore, environmental stability tests such as high-temperature, high-humidity, and thermal cycling tests must be conducted to ensure the long-term stability and reliability of the materials.
Rogers 3003 + FR4 high-frequency PCBs are an ideal choice for high-frequency communication, RF devices, radar systems, and more due to their exceptional high-frequency performance and cost efficiency. During production, special attention must be paid to the differences in material properties and precise control of manufacturing processes to ensure that the final product maintains superior electrical and mechanical performance under demanding application conditions.
