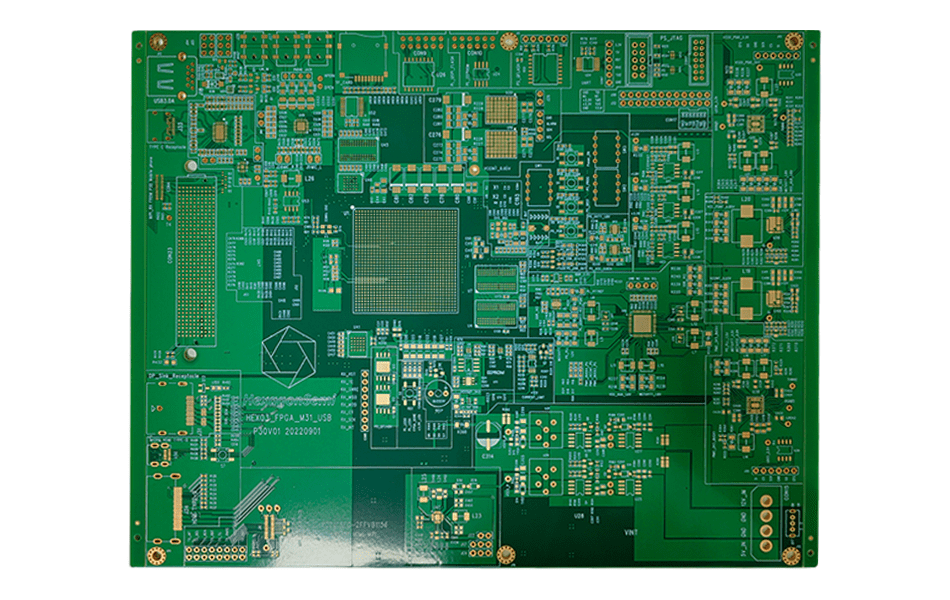

Four-layer double-sided high-frequency PCBs are widely used in modern electronic devices, particularly in scenarios where high-frequency signal transmission and high reliability are required. The design and manufacturing of these boards are more complex than standard PCBs, requiring higher precision and processing stability. This document provides a detailed overview of the processing precautions and application areas for four-layer double-sided high-frequency PCBs to better understand the characteristics of this advanced circuit board and its importance in practical applications.
1. Processing Precautions for Four-layer Double-sided High-Frequency PCBs
Material Selection Material selection is the first step in high-frequency PCB manufacturing. Common materials for high-frequency PCBs include PTFE (polytetrafluoroethylene), ceramic-filled PTFE, fluororesin, and other low-loss materials. The dielectric constant (Dk) and dielectric loss factor (Df) of these materials directly impact signal transmission. Materials should ideally exhibit low loss, high stability, and high-temperature resistance to ensure signal integrity and stability under high-frequency conditions. Additionally, the coefficient of thermal expansion (CTE) for different materials should match to avoid delamination and deformation due to temperature variations.
Stack-up Design The stack-up design is crucial for high-frequency signal transmission. Four-layer structures typically use a layout with signal, ground, and power layers to reduce signal crosstalk and reflection. To ensure stable high-frequency signal transmission, signal layers are generally designed as inner layers, with ground and power layers on the outer layers to provide shielding and stable current paths. Layer spacing and copper foil thickness should also be optimized based on application requirements and impedance specifications.
Lamination Process Lamination, which combines and bonds each layer of material, requires strict control over temperature and pressure. High lamination temperatures may cause material decomposition, while low temperatures may result in insufficient bonding strength. Gradual lamination techniques and vacuum lamination equipment are often used to reduce bubbles and delamination problems. In high-frequency PCB manufacturing, the lamination process should also consider the thermal expansion coefficient of each material to avoid interlayer separation due to temperature fluctuations.
Drilling Process The drilling process is crucial in four-layer double-sided high-frequency PCBs, involving through-holes, as well as blind and buried vias. High-frequency materials are typically hard, which can cause burrs and rough hole walls during drilling. Using precision drill bits and proper parameter control can reduce hole wall defects. Laser drilling is often used to achieve higher precision and smoother hole walls, effectively reducing signal loss.
Impedance Control Impedance control is essential for signal transmission in high-frequency PCBs. Impedance affects signal integrity, and parameters like line width, spacing, interlayer distance, and dielectric material must be precisely calculated. Simulation tools are typically used to optimize impedance parameters and ensure conformity with design standards under high-frequency conditions. Impedance testing during production is also necessary to confirm impedance stability.
Surface Treatment Surface treatment in high-frequency PCBs should provide low signal loss and good oxidation resistance to reduce signal loss and prolong the board’s lifespan. Common surface treatments include chemical gold plating, chemical silver plating, tin plating, and nickel-gold plating, with chemical gold plating being the preferred choice for high-frequency PCBs. Gold plating effectively reduces contact resistance, offers excellent conductivity, and has good oxidation resistance, making it ideal for high-frequency circuits in long-term operation.
Signal Integrity Testing Signal integrity is a key quality indicator for high-frequency PCBs. Signal integrity testing ensures stable signal transmission and includes parameters like reflection coefficient, transmission loss, crosstalk, and delay. S-parameter testing with specialized equipment effectively evaluates PCB performance under high-frequency conditions, ensuring circuit reliability.
Static Protection and Electromagnetic Interference (EMI) Prevention High-frequency PCBs are susceptible to static and electromagnetic interference during manufacturing and testing, especially at high signal frequencies. Static protection includes wearing anti-static wristbands and using anti-static mats to prevent static buildup from impacting PCB performance. EMI prevention involves using a well-designed grounding layer and shielding materials to reduce interference.
Quality Inspection and Control Quality inspection and control are critical in ensuring that high-frequency PCBs meet design standards. Common inspections include AOI (Automated Optical Inspection), electrical testing, X-ray inspection, and interlayer alignment inspection. Electrical testing ensures stable high-frequency signal transmission, while X-ray inspection verifies alignment accuracy for blind/buried vias, ensuring the reliability of high-frequency circuits.
2. Application Areas of Four-layer Double-sided High-Frequency PCBs
Four-layer double-sided high-frequency PCBs feature excellent signal transmission and anti-interference performance and are widely used in the following areas:
Wireless Communication Equipment High-frequency PCBs are vital in wireless communication devices, including mobile communication base stations, 5G antennas, and Wi-Fi routers. Due to the high communication frequencies, signal transmission loss and interference are significant issues. Four-layer double-sided high-frequency boards effectively reduce signal attenuation, providing stable signal transmission.
Radar and Navigation Systems In radar and navigation systems, the high-frequency performance of the PCB determines radar signal clarity and positioning accuracy. High-frequency PCBs are applied in radar antennas and navigation receivers, supporting high-speed data transmission and precise signal processing.
Satellite Communication Satellite communication requires PCBs that can operate stably under high-frequency and extreme conditions. High-frequency PCBs meet the high-frequency transmission, anti-interference, and low-loss demands of satellite communication, suitable for satellite receivers, antennas, and other core modules.
Medical Equipment High-frequency PCBs are widely used in medical imaging equipment, such as CT and MRI. These devices require stable signal transmission for clear and precise imaging. High-frequency PCBs provide stable signal transmission and anti-interference properties, ensuring the accuracy and reliability of medical equipment.
Automotive Electronics With the rise of automotive intelligence, high-frequency PCBs are increasingly needed in car radar, navigation, and communication modules. Four-layer double-sided high-frequency PCBs ensure high-speed signal transmission, supporting the reliable operation of automotive electronic systems and are widely used in autonomous driving and in-car entertainment systems.
Industrial Automation Equipment High-frequency PCBs play a crucial role in industrial automation equipment, especially in high-frequency measurement and wireless data transmission equipment. High-frequency PCBs ensure the data transmission speed and stability of industrial control systems and are suitable for sensor modules and wireless monitoring systems.
