In high-frequency PCB design, the fast transmission speed and high frequency of signals make even minor design deviations or material changes significantly impact signal quality and transmission performance. Therefore, when designing a high-frequency PCB (Printed Circuit Board), several key aspects need special attention, including material selection, impedance control, layer stacking, trace layout, grounding and power management, via usage, filtering and decoupling design, among others. Below is a detailed introduction to the critical points in high-frequency PCB design.
Key Points in High-Frequency PCB Design
1. Material Selection
Material selection is crucial to signal transmission performance in high-frequency PCBs. High-frequency signals are highly sensitive to the dielectric constant (Dk) and dielectric loss (Df) of the materials. Thus, materials with stable and low Dk and Df values should be chosen to ensure signal integrity. Common high-frequency materials include the Rogers series, such as the 3000, 4000, and 5000 series. Thermal stability, mechanical strength, and processability are also key factors in material selection.
Dielectric Constant (Dk): The stability of the Dk value affects signal propagation speed; thus, stable Dk materials should be selected.
Dielectric Loss (Df): Lower Df reduces signal attenuation and enhances signal quality.
Thermal Expansion Coefficient (CTE): Materials with low CTE are better suited for high-temperature environments.
2. Impedance Control
Impedance control is crucial in high-frequency PCB design. With high-frequency signals having short wavelengths, minor impedance variations can cause reflection and loss. Therefore, strict impedance control is necessary, typically achieved by adjusting trace width, substrate thickness, and the material’s dielectric constant.
Microstrip and Stripline: Microstrip lines are often used for surface traces, while striplines are used for inner layers. The impedance calculations differ for each.
Characteristic Impedance Calculation: Use professional impedance calculation tools to achieve matched design based on trace width, dielectric thickness, and Dk.
Impedance Matching: Ensure consistent impedance across all connections to avoid reflection and energy loss.
3. Layer Stack-Up Design
Layer stack-up design is vital for high-frequency PCBs, as a reasonable stack-up can effectively reduce signal interference and improve signal integrity. High-frequency designs often employ multi-layer boards, with tightly coupled power and ground planes for shielding effects and reduced electromagnetic interference (EMI).
Power and Ground Planes: Place power and ground planes adjacent to increase capacitance and reduce noise.
Signal Layer Distribution: High-frequency signals should be placed away from power layers to minimize noise impact.
Symmetrical Layer Structure: A symmetrical layer structure prevents board warping, enhancing reliability in manufacturing.

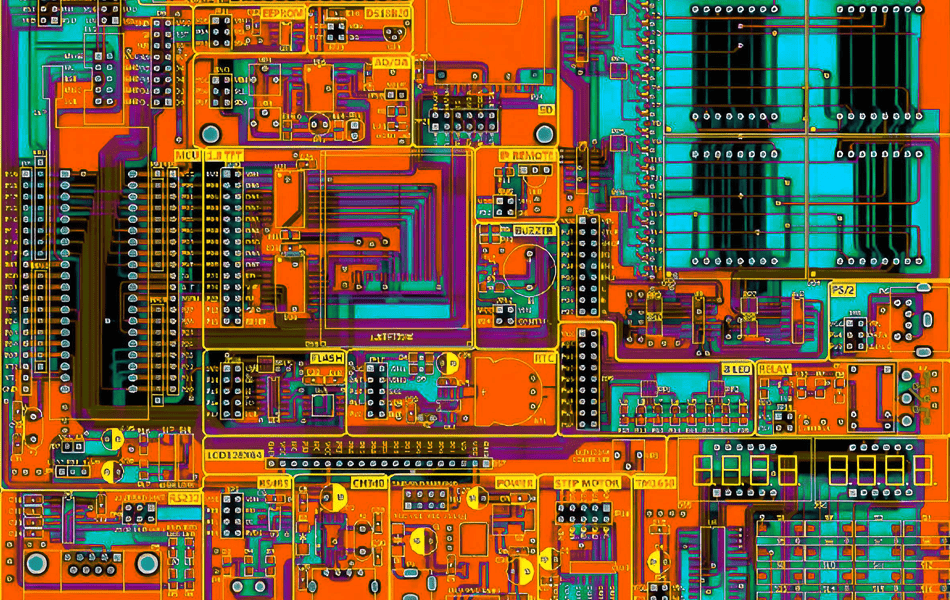

4. Trace Layout
Trace layout significantly impacts signal quality in high-frequency designs. Trace length, width, bending methods, and spacing between adjacent signals must be strictly controlled to avoid coupling and crosstalk.
Trace Width: The trace width directly affects impedance; thus, it must match the impedance design.
Trace Spacing: Maintain sufficient spacing between high-frequency traces to avoid crosstalk.
Bending Method: Use 45° angles or rounded bends to minimize signal reflection and avoid 90° bends.
Differential Pairs: For high-speed differential signals, use differential pairs with equal length and spacing for synchronization.
5. Grounding and Power Management
Grounding design is essential for interference suppression and signal integrity in high-frequency PCB designs. Proper grounding reduces noise interference and enhances signal quality, often achieved through multi-layer grounding and decoupling capacitors.
Multi-Point Grounding: Multi-point grounding reduces impedance and noise.
Decoupling Capacitors: Place decoupling capacitors between power and ground to filter high-frequency noise.
Ground Plane Integrity: Ensure an uninterrupted ground plane to minimize interference and impedance discontinuities.
6. Via Usage
Vias are vital in high-frequency PCB design but can cause inductance effects that impact signal transmission. Therefore, via usage should be minimized or optimized in high-frequency PCB design.
Minimize Via Usage: Excessive vias affect signal path continuity; minimize via usage when possible.
Blind and Buried Vias: In multilayer PCBs, using blind and buried vias helps reduce interference and parasitic inductance.
Via Ring Width: Adequate via ring width ensures reliable signal transmission while reducing inductance effects.
7. Filtering and Decoupling Design
High-frequency circuits are susceptible to noise and interference, making filtering and decoupling design essential. Proper filtering and decoupling effectively reduce noise and improve signal quality.
Filter Capacitors: Use appropriate capacitors to filter noise at power pins.
Decoupling Capacitor Placement: Place decoupling capacitors close to the IC’s power and ground pins.
Power Filtering: Add power filtering circuits at the power entry point to reduce incoming noise.
8. Thermal Management
In high-frequency circuits, component heat dissipation is significant, making thermal management design crucial. Heat can be dissipated using thermal vias, heat sinks, or thermal conductive materials to maintain stable circuit operation.
Thermal Vias and Heat Sinks: Design thermal vias and heat sinks around high-power components to aid heat dissipation.
Thermal Conductive Materials: Use thermal materials between the PCB and heat sink to improve heat transfer efficiency.
Thermal Simulation Analysis: Use thermal simulation tools to analyze PCB heat distribution and optimize thermal management design.
This detailed breakdown of key considerations for high-frequency PCB design covers material selection, impedance control, grounding, and more to enhance signal integrity, noise reduction, and overall reliability in high-frequency applications.
