1. What is Impedance Control?
Impedance control is a critical aspect of high-frequency PCB design to ensure signals propagate through transmission lines with minimal loss and reflection, thus maintaining signal integrity. Impedance is a combination of resistance, inductance, and capacitance in the transmission line and is primarily influenced by the geometry of the traces, material properties, and signal frequency.
In high-frequency circuits, especially in RF, microwave, and high-speed digital designs (e.g., 5G, Wi-Fi 6), uncontrolled impedance can lead to issues such as signal reflection, ringing, overshoot, signal distortion, and system instability.
2. Major Types of Impedance Control
Single-Ended Impedance
Used for single-ended signals (e.g., standard digital signals), typically designed at 50Ω or 75Ω. Key factors:
Trace Width
Distance from trace to the reference plane
Dielectric constant (Dk) of the substrate
Differential Impedance
Differential impedance applies to differential pairs (e.g., USB, HDMI, Ethernet) and is typically designed at 90Ω or 100Ω. Key factors:
Trace spacing
Trace width
Distance from trace to the reference plane
Characteristic Impedance
High-frequency signals often require specific characteristic impedance values (e.g., 50Ω for RF circuits), which need precise calculation, simulation, and manufacturing control.
3. Key Parameters Affecting Impedance Control
Dielectric Constant (Dk)
The dielectric constant of PCB materials affects signal speed and impedance. Lower Dk materials (e.g., Rogers 4003C, PTFE) are commonly used in high-frequency circuits.
Dielectric Thickness
The distance between the trace and the reference plane directly impacts impedance. A thicker dielectric layer results in higher impedance.
Trace Width
Wider traces lower the impedance. Calculating optimal trace width is essential for meeting target impedance values.
Trace Spacing
For differential signals, narrower spacing results in lower differential impedance. Accurate spacing control is critical for proper coupling.
Loss Tangent (Df)
High-frequency signals experience attenuation due to material loss. Low-loss materials (e.g., Rogers, Taconic) are vital for high-frequency designs.
4. Steps to Achieve Impedance Control
Transmission Line Calculation
Use tools like Polar, Altium Designer, or Cadence to calculate transmission line geometry and material parameters to achieve the desired impedance.
Stackup Design
Design the PCB layer stackup to ensure stable distances between signal and reference planes, providing a good ground return path for high-frequency signals.

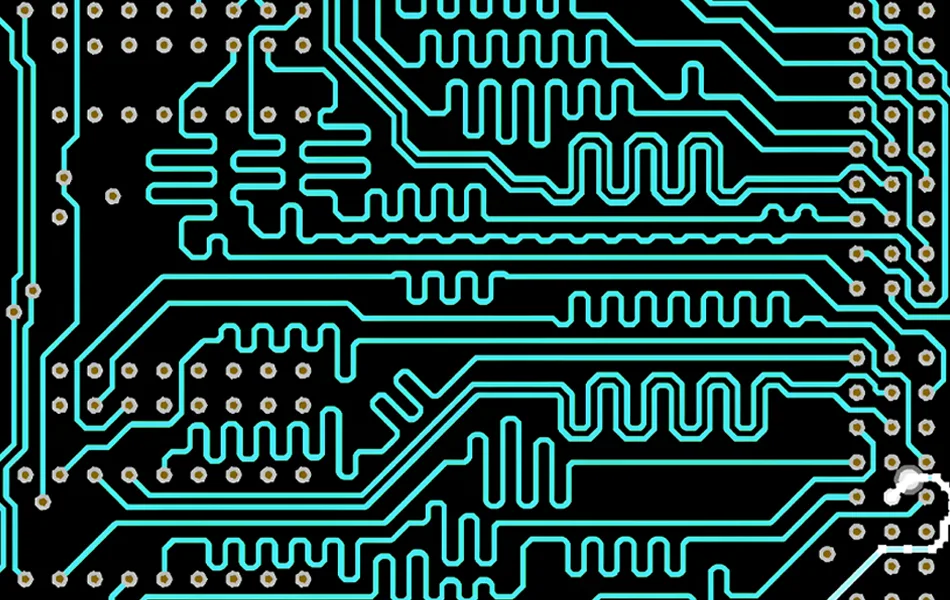

Trace Layout
Single-Ended Signals: Control trace width to match target impedance.
Differential Signals: Maintain precise trace spacing and width for differential impedance.
Simulation
Perform signal integrity and impedance analysis using simulation tools (e.g., HFSS, ADS) to verify the design meets requirements.
Manufacturing Control
Work with experienced manufacturers to control process tolerances (e.g., trace width deviation ≤0.02mm) and ensure impedance consistency.
5. Common Problems and Solutions
Issue: Impedance Deviation Due to Manufacturing Tolerances
Solution: Communicate with manufacturers to define detailed process tolerances and provide impedance specifications.
Issue: Severe Signal Reflection
Solution: Verify impedance matching and adjust trace width or materials to optimize performance.
Issue: Poor Coupling in Differential Pairs
Solution: Reduce trace spacing, increase coupling strength, and ensure equal trace lengths in differential pairs.
6. Application Examples
5G Antenna Design
Requires a 50Ω single-ended impedance design with low-Dk materials to minimize signal loss.
HDMI Interface Design
Demands a 100Ω differential impedance design with precise trace spacing control to prevent EMI issues.
Impedance control in high-frequency PCB design is crucial for maintaining signal integrity and achieving optimal performance. Proper parameter selection, design tools, and manufacturing control are the keys to success. With the growth of 5G and millimeter-wave communications, impedance control will become even more critical.
