The circuit design of high-frequency PCBs is one of the most critical parts of the entire manufacturing process, as it directly affects the quality of signal transmission, device performance, and system stability. When designing high-frequency circuits, engineers must consider aspects such as signal integrity, impedance matching, electromagnetic interference, and thermal management to ensure the PCB can operate effectively in high-frequency environments. Below are the main steps in high-frequency PCB circuit design and the important considerations.

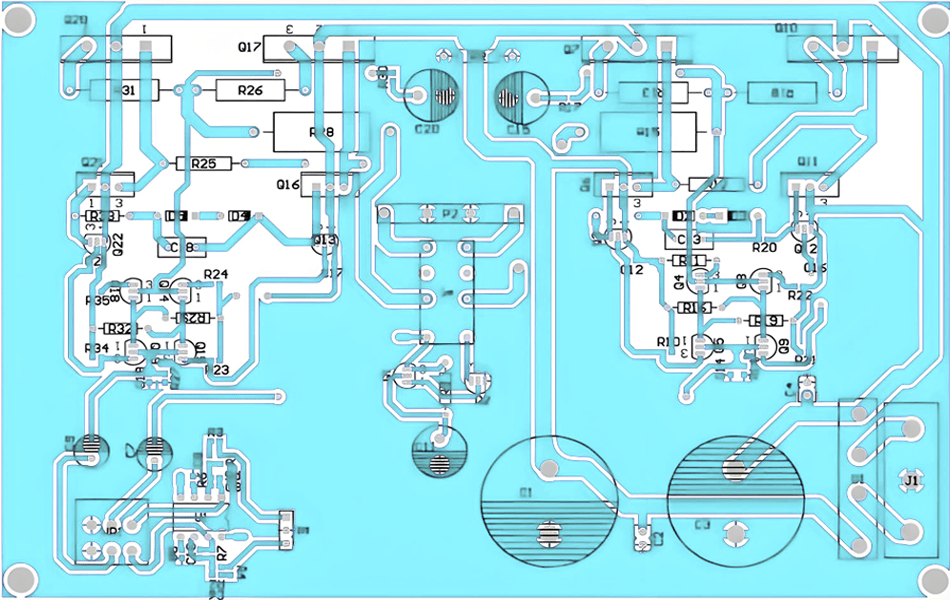

Main Steps in Circuit Design
1. Define Requirements
Before starting the design, it is essential to define the specific requirements for the high-frequency circuit, including:

Operating Frequency: The operating frequency of the high-frequency circuit is a fundamental parameter that influences material selection, trace design, and other aspects.
Signal Type: Determine whether the circuit handles analog or digital signals, or a combination of both. High-frequency circuits often deal with RF (radio frequency) or microwave signals, making transmission line design crucial.
Design Goals: These include impedance control, signal integrity, and electromagnetic compatibility (EMC) requirements.
2. Material Selection
Material selection is a key factor in high-frequency PCB design. The dielectric constant (Dk) and dielectric loss tangent (Df) of different materials directly affect circuit performance. Common high-frequency PCB materials include:

Rogers Materials: Such as Rogers 4350 and Rogers 5880, suitable for high-frequency and ultra-high-frequency applications.
Taconic Materials: Another popular high-frequency material with excellent high-frequency characteristics.
Other Low-loss Materials: Such as PTFE-based substrates, which have low dielectric constants and loss tangents, ideal for high-frequency signal transmission.
When selecting materials, consider:

Dielectric Constant (Dk): Lower Dk materials enhance signal transmission speed and reduce signal delay.
Dielectric Loss Tangent (Df): Lower loss tangents result in less energy loss during signal transmission.
3. Impedance Matching Design
High-frequency signals are highly sensitive to impedance mismatches, which can cause signal reflection and increased loss, affecting signal integrity. To ensure stable signal propagation along transmission lines, pay attention to:

Trace Width: The trace width and the thickness of the PCB’s dielectric material determine the characteristic impedance of the transmission line, with common designs targeting 50 ohms or 75 ohms impedance.
Microstrip and Stripline: Microstrip (surface traces) and stripline (embedded traces) are two primary transmission structures in high-frequency PCB design, helping control impedance effectively.
The key to impedance matching design lies in ensuring that the trace impedance matches the input/output impedance of the devices, minimizing signal reflection.

4. Signal Integrity Design
Signal integrity is a core goal in high-frequency circuit design. To ensure signals are transmitted without distortion or interference, designers should consider:

Trace Layout: High-frequency signal traces should avoid sharp corners, maintain smooth transitions, reduce trace lengths, and avoid crossing. Each signal trace should have sufficient spacing to minimize crosstalk.
Grounding Design: A good grounding strategy helps reduce electromagnetic interference (EMI). Multilayer PCBs typically allocate one layer exclusively for grounding to provide a low-impedance return path.
Signal Loop Path: Minimize signal loop areas to avoid unnecessary high-frequency radiation.
5. Electromagnetic Compatibility (EMC) Design
High-frequency circuits are prone to electromagnetic interference (EMI), so it is essential to consider EMC issues during design. Key EMC considerations include:

Shielding Design: Physical isolation of key high-frequency circuits with shielding enclosures or metal cases reduces external EMI.
Proper Routing: Keep high-frequency signal lines separate from low-frequency lines to minimize interference.
Signal and Power Isolation: Use filtering and isolation techniques to reduce electromagnetic interference between different circuit modules.
6. Thermal Management Design
Due to the high-speed transmission of signals in high-frequency circuits, PCBs may generate significant heat. To ensure the circuit operates normally under high temperatures, effective thermal management is crucial, including:

Thermal-sensitive Component Placement: Components that generate heat, such as power amplifiers (PA), should be placed away from sensitive circuits, or heat should be dissipated using heat sinks or thermal materials.
Multilayer PCB Design: Increasing PCB layers can optimize thermal conduction paths, allowing heat to be quickly transferred to heat dissipation layers.
7. Simulation and Verification
Once the high-frequency PCB design is complete, it is essential to use simulation tools for electromagnetic analysis to verify signal integrity, impedance matching, and EMI issues. Common simulation tools include:

HFSS (High-Frequency Structure Simulator): A 3D electromagnetic simulation tool used for high-frequency circuits and antenna design.
ADS (Advanced Design System): Focuses on RF and microwave circuit design and simulation.
Simulation is a critical step in identifying potential issues early in the design process, avoiding electrical performance deviations after manufacturing.

Key Considerations in High-Frequency PCB Design
Consistency of Dielectric Constant: The dielectric constant of the material must be uniform and consistent. Variations in dielectric constant can affect signal propagation speed and integrity in high-frequency PCBs.

Trace Spacing: The spacing between high-frequency signal traces should be large enough to avoid crosstalk and electromagnetic coupling. The distance between traces and ground planes should also be controlled to ensure consistent impedance.

Short Trace Principle for High-Frequency Signals: In high-frequency circuit design, signal traces should be as short as possible. Long traces increase capacitance effects and signal delay, which can degrade signal integrity.

Minimize Via Usage: Vias introduce parasitic inductance and capacitance, which are detrimental to high-frequency signal transmission. Minimize the number of vias in the design to improve signal performance.

Reference Designs and Standards: Referencing industry standards or proven reference designs during the design process can improve the stability and feasibility of the design.

By following these steps and considerations, engineers can create high-frequency PCB designs that maintain signal integrity, minimize loss, and ensure reliable performance in high-frequency applications.
