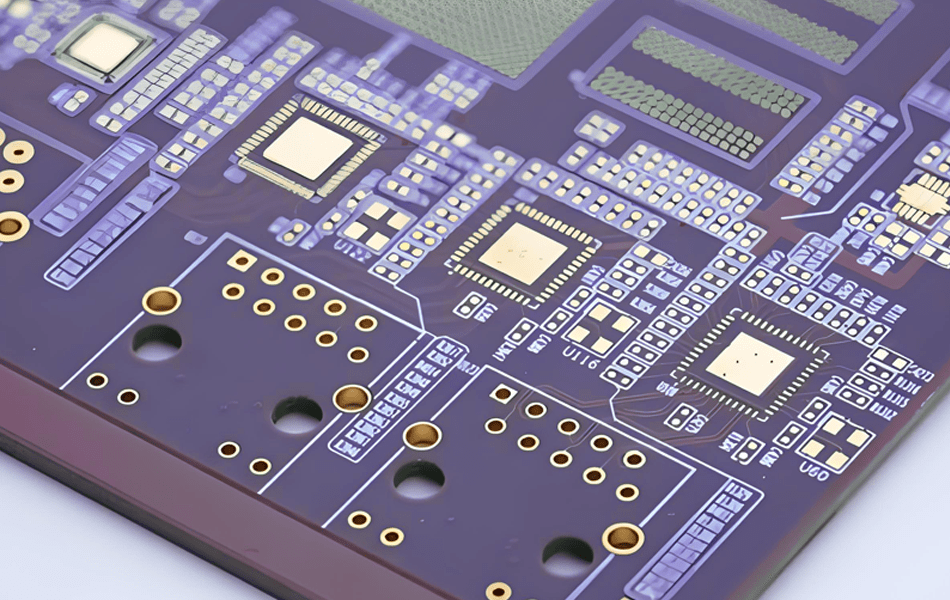

1. Overview of HDI PCB High-Density Interconnect (HDI) PCBs are advanced circuit boards featuring microvia technology, high-density routing, and stacked layers. Widely used in smartphones, tablets, medical devices, and aerospace applications, HDI PCBs offer advantages such as compact size, lightweight, and high performance. However, due to their unique design and manufacturing requirements, HDI PCBs present significant production challenges and demand meticulous attention to detail during processing.
2. Challenges in HDI PCB Manufacturing
Microvia Drilling
High Precision Required: Microvia diameters typically range from 50 to 150 microns. Any deviation can result in misalignment or poor via quality.
Plating Challenges: Uniform and defect-free plating within microvias is crucial to ensure conductivity and reliability.
Stacked Layers
Multiple Lamination Cycles: HDI PCBs require multiple laminations, each demanding precise alignment of layers. Warping or delamination can occur during repeated cycles.
Thermal Expansion Control: Different materials’ thermal expansion coefficients can cause stress during lamination, affecting board flatness and performance.
High-Density Routing
Fine Line Widths and Spacing: HDI PCBs often feature line widths and spacing as small as 3-5 mils (75-125 microns), requiring highly precise fabrication equipment.
Signal Integrity Issues: High-speed signals require optimized routing and via design to ensure signal integrity and electromagnetic compatibility.
Surface Treatment
Uniform Coating: Processes such as ENIG (Electroless Nickel Immersion Gold) or OSP can be inconsistent on densely packed PCBs.
Cleanliness Requirements: The presence of microvias and fine pitch features increases the difficulty of maintaining a clean surface.
3. Key Considerations for HDI PCB Processing
Design Stage
Optimize Microvia Layout: Distribute vias evenly to avoid localized stress and minimize electrical interference.
Layer Stack Design: Choose an optimal stack-up to balance performance, cost, and manufacturability.
Routing Guidelines: Define clear rules for line width, spacing, and via placement, especially for high-speed signals.
Material Selection
High-Quality Substrates: Use materials with low thermal expansion and excellent electrical properties, such as high Tg FR-4 or Rogers laminates.
Reliable Adhesives: Select high-performance bonding sheets to ensure strong layer adhesion.
Microvia Drilling
Advanced Laser Drilling: Laser drilling ensures precise and consistent microvia formation.
Post-Drilling Cleaning: Perform desmearing to ensure clean via walls.
Lamination Process
Accurate Alignment: Use CCD alignment systems to improve registration accuracy.
Optimize Lamination Parameters: Adjust temperature, pressure, and time based on material properties to prevent warping or delamination.
Surface Treatment
Control Plating Thickness: Ensure the nickel-gold layer thickness is within specification to prevent soldering issues.
Cleanliness Standards: Use plasma cleaning or ultrasonic cleaning to remove contaminants.
Inspection and Quality Control
AOI Inspection: Employ Automated Optical Inspection to identify defects in traces and via alignment.
Reliability Testing: Perform peel strength and conductivity tests on microvias to verify quality.
4. Case Study of HDI PCB Process Optimization A manufacturer achieved a 98% yield rate for microvias by adopting laser drilling and automated lamination equipment. Production time was reduced by 20%, while enhancements in surface treatment lowered soldering defects and improved product reliability.
5. Conclusion HDI PCBs are integral to modern electronics, but their manufacturing complexity poses significant challenges. By optimizing design, selecting quality materials, leveraging advanced equipment, and maintaining strict process controls, manufacturers can overcome these difficulties, enhancing efficiency and product quality.
